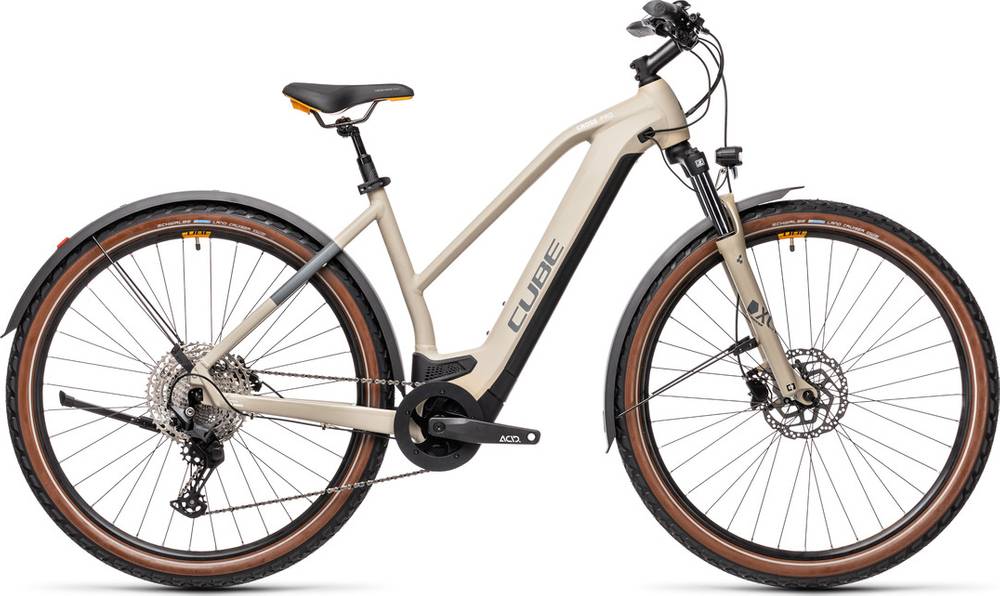

CUBE CROSS HYBRID PRO 500 ALLROAD Trapeze 2021
2021 E-bike
Estimate price |
3,038$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour XCM ATB Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 38T, 175mm
Chain
KMC X11
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Land Cruiser, Active, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit All Terrain
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.56 mm |
| Front Center | 688 mm | 693 mm | 704 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 83 mm | 83 mm | 82 mm |
| Stack | 638 mm | 648 mm | 657 mm |
| Reach | 414 mm | 415 mm | 422 mm |
| Top Tube Length | 586 mm | 596 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 114 mm | 125 mm | 134 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1146 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 731 mm | 738 mm | 750 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
CROSS HYBRID PRO 500 ALLROAD Trapeze belongs to the Cube E Cross model. CUBE launched 67 e-bikes of this model so far. You can easily view all of the Cube E Cross e-bikes models from 2021, here.
Model range prices
The most economical model, the CUBE CROSS HYBRID PRO 500 ALLROAD 2021 has a starting price of 2813$. CUBE CROSS HYBRID SL 625 ALLROAD Trapeze 2021 on the other hand is the most expensive at 4299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, CUBE CROSS HYBRID PRO 500 ALLROAD Trapeze price was 2813$. Doing a quick comparison, we notice that CROSS HYBRID PRO 500 ALLROAD Trapeze price is 13.43% more expensive than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 23.9 kg (52.69 lbs), the CROSS HYBRID PRO 500 ALLROAD Trapeze model is slightly heavier than average. In other words, this model is 0.46% heavier than the average Hybrid e-bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the CROSS HYBRID PRO 500 ALLROAD Trapeze model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE CROSS HYBRID PRO 500 ALLROAD Trapeze has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CUBE CROSS HYBRID PRO 500 ALLROAD Trapeze e-bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
