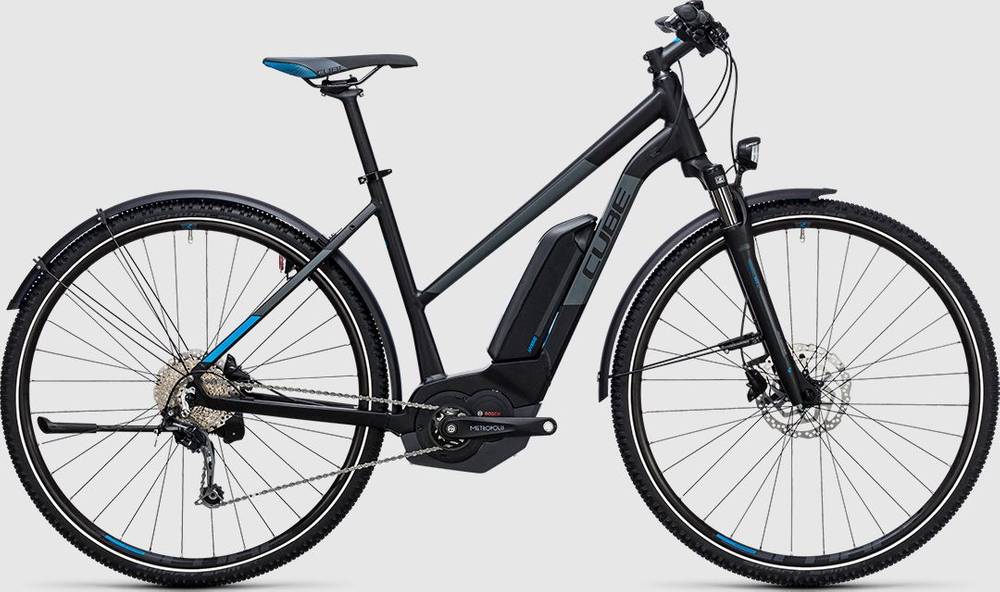

CUBE CROSS HYBRID Pro Allroad 500 2017
2017 E-bike
Weight | 21.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Gravity Casting Bracket, Double Butted, Disc Only
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M592, 9-Speed
Shift Levers
Shimano Deore SL-M590
Cassette
Shimano CS-HG300, 11-34T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 81 mm | 78 mm | 66 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
CROSS HYBRID Pro Allroad 500 completes the Cube E Cross model. There are 67 e-bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Touring e-bikes average price
If you want an acceptable Touring e-bike you should know that the average price is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Touring e-bikes
The average weight for Touring e-bikes is 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 21.8 kg (48.06 lbs), the CROSS HYBRID Pro Allroad 500 model is much lighter than average. In conclusion, the average Touring e-bike weighs 17.2% more than CROSS HYBRID Pro Allroad 500.
Overview of components
Fork
The CROSS HYBRID Pro Allroad 500 comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the CROSS HYBRID Pro Allroad 500 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CROSS HYBRID Pro Allroad 500 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
