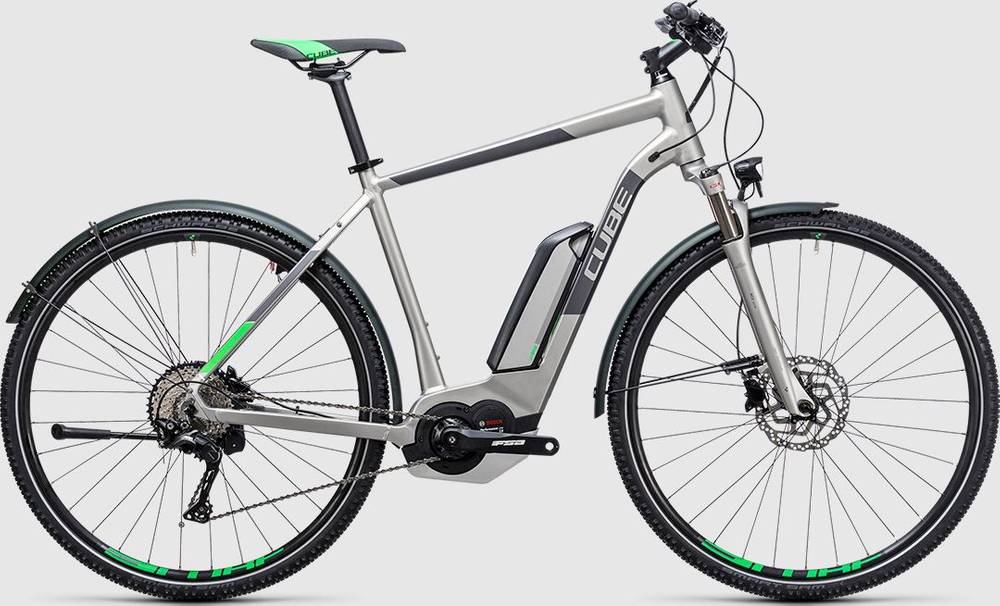

CUBE CROSS HYBRID Race Allroad 500 2017
2017 E-bike
Weight | 21.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NCX -
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Gravity Casting Bracket, Double Butted, Disc Only
Suspension Fork
SR Suntour NCX D RL Air, 63mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-SGS, ShadowPlus, 11-Speed
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
FSA CK-745, 15T
Chain
KMC X11
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano Deore HB-M615, Centerlock
Rear Hub
Shimano Deore FH-M615, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.63 mm | 1.63 mm | 1.64 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 632 mm | 633 mm | 650 | 666 mm |
| Rake | 35 mm | 41 mm | 41 mm | 42 mm |
| Trail | 88 mm | 72 mm | 72 mm | 71 mm |
| Stack | 601 mm | 626 mm | 645 mm | 664 mm |
| Reach | 382 mm | 385 mm | 395 mm | 404 mm |
| Top Tube Length | 567 mm | 578 mm | 593 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1090 mm | 1091 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
CROSS HYBRID Race Allroad 500 completes the Cube E Cross model. 67 e-bikes variations carry this model name so far. You can easily view all of the Cube E Cross e-bikes models from 2017, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring e-bikes
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Touring e-bikes
Touring e-bikes weigh an average of 25.55 kg (56.33 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CUBE CROSS HYBRID Race Allroad 500 it’s weighing 21.1 kg (46.52 lbs). At this weight, is much lighter than average. In conclusion, the average Touring e-bike weighs 21.09% more than CROSS HYBRID Race Allroad 500.
CROSS HYBRID Race Allroad 500 components
Fork
CUBE CROSS HYBRID Race Allroad 500 2017 e-bike is equipped with the SunTour NCX fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, CUBE CROSS HYBRID Race Allroad 500 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE CROSS HYBRID Race Allroad 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
