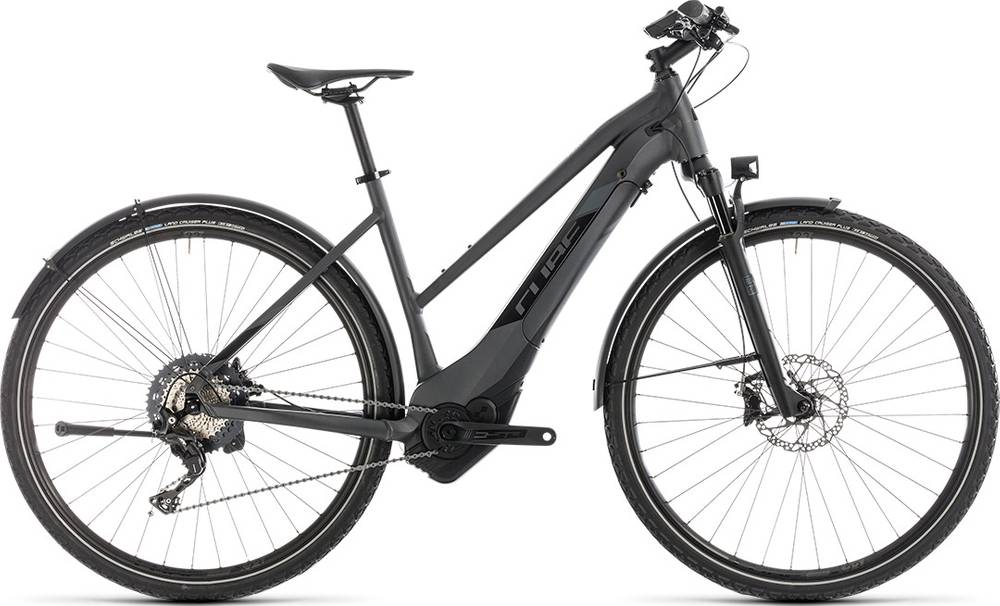

CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019
2019 E-bike
Estimate price |
3,784$
Weight | 23.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Comfort, Tapered Headtube, Internal Cable Routing, Full Integrated Battery
Suspension Fork
RockShox Paragon Gold Air, 65mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 16T, 175mm
Chain
KMC X11e
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Land Cruiser, Active, 47-622
Brakes
Brakes
Shimano XT BR-M8020/BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit GRIP All Terrain
Headset
FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active Race
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Kiox
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.6 mm | 1.61 mm |
| Front Center | 644 mm | 644 mm | 656 mm |
| Rake | 42 mm | 41 mm | 41 mm |
| Trail | 89 mm | 83 mm | 83 mm |
| Stack | 621 mm | 635 mm | 649 mm |
| Reach | 389 mm | 396 mm | 403 mm |
| Top Tube Length | 577 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1103 mm | 1103 mm | 1115 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
CROSS HYBRID SL 500 Allroad Trapeze is part of the Cube E Cross model. CUBE released 67 e-bikes variations of this model so far. Take a sneak peek at all Cube E Cross e-bikes models from 2019, by clicking here.
Model range prices
CUBE CROSS HYBRID ONE 400 2019 is the most economical model, with a starting price of 1910$. CUBE CROSS HYBRID SL 500 Allroad Trapeze 2019 on the other hand costs 3503$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2019 for 3503$. If we compare this with the average Hybrid e-bike cost we notice that the price is 41.25% higher.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.3 kg (51.37 lbs), CUBE e-bike is slightly lighter than average. To sum up, it’s 2.1% lighter than the average weight of Hybrid e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CROSS HYBRID SL 500 Allroad Trapeze components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on CROSS HYBRID SL 500 Allroad Trapeze are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE CROSS HYBRID SL 500 Allroad Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
