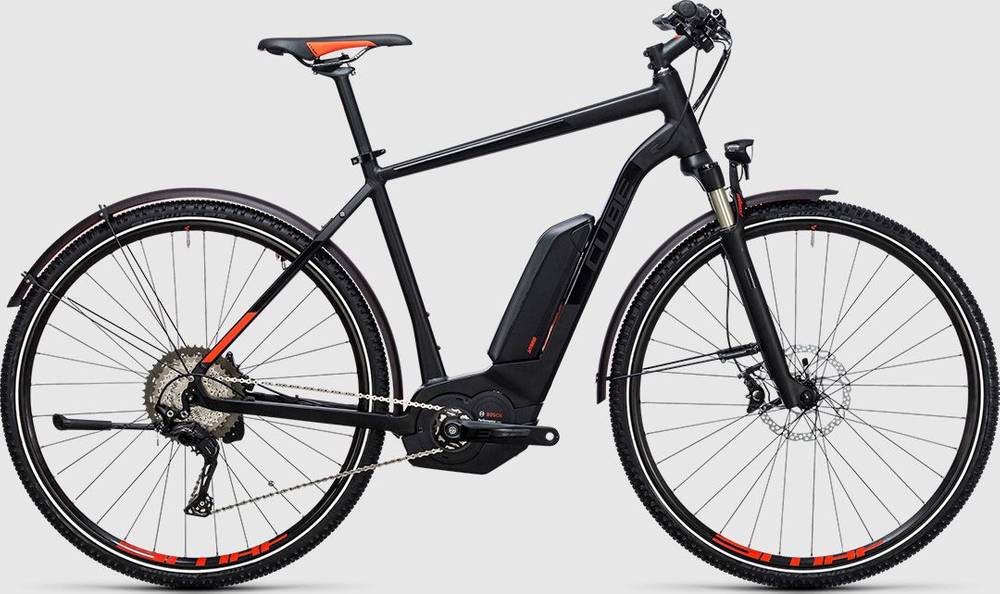

CUBE CROSS HYBRID SL Allroad 500 2017
2017 E-bike
Weight | 20.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort, Gravity Casting Bracket, Double Butted, Disc Only
Suspension Fork
Rock Shox Paragon Gold, 63mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-SGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.63 mm | 1.63 mm | 1.64 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 632 mm | 633 mm | 650 | 666 mm |
| Rake | 35 mm | 41 mm | 41 mm | 42 mm |
| Trail | 88 mm | 72 mm | 72 mm | 71 mm |
| Stack | 601 mm | 626 mm | 645 mm | 664 mm |
| Reach | 382 mm | 385 mm | 395 mm | 404 mm |
| Top Tube Length | 567 mm | 578 mm | 593 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1090 mm | 1091 mm | 1108 mm | 1124 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
CROSS HYBRID SL Allroad 500 belongs to the Cube E Cross model. 67 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Cross e-bikes models from 2017, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Touring e-bikes
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 20.8 kg (45.86 lbs), the CROSS HYBRID SL Allroad 500 model is much lighter than average. In conclusion, the average Touring e-bike weighs 22.84% more than CROSS HYBRID SL Allroad 500.
Overview of components
Fork
CUBE CROSS HYBRID SL Allroad 500 2017 e-bike is equipped with the RockShox Paragon Gold RL fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the CROSS HYBRID SL Allroad 500 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CROSS HYBRID SL Allroad 500 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
