Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Cross Taper Double Butted
Suspension Fork
Rock Shox Paragon Gold Taper, 63mm
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano LX FD-T670, Top Swing, 31.8mm
Shift Levers
Shimano SLX SL-M670, Rapidfire-Plus
Cassette
Shimano CS-HG500, 11-34T
Crank
Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Pedals
CUBE Aluminium MTB
Wheels
Front Hub
Shimano HB-M4050
Rear Hub
Shimano FH-M4050
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Tour
Headset
FSA Orbit Z-t ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal Viper
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.62 mm | 1.63 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm |
| Front Center | 618 mm | 628 mm | 644 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 629 mm | 638 mm | 657 mm |
| Reach | 386 mm | 393 mm | 402 mm |
| Top Tube Length | 576 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1058 mm | 1068 mm | 1084 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 |

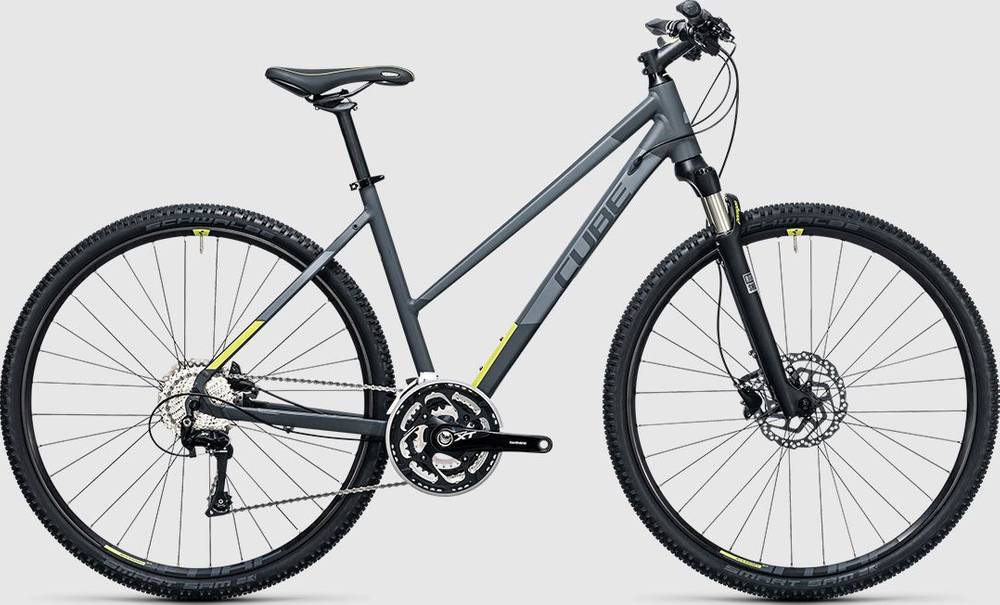

Model Overview
CROSS Pro is a Cube Cross model. CUBE launched 72 bikes of this model so far. Take a sneak peek at all Cube Cross bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring bikes
According to our calculations, the average cost of a Touring bike that is reliable is 1007$. However, you could also get a good Touring bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Touring bikes
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 12.4 kg (27.34 lbs), the CROSS Pro model is a bit lighter than average. In other words, this model is 7.66% lighter than the average Touring bike.
CROSS Pro components
Fork
This bike has the RockShox Paragon Gold RL fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the CROSS Pro bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE CROSS Pro has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
