Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Cross Double Butted
Suspension Fork
SR Suntour NEX HLO, 63mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M592, 9-Speed
Front Derailleur
Shimano FD-M370, Topswing, 31.8mm
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
Shimano FC-M371, 48x36x26T, BB-UN100, 175mm, Chainguard
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE K68F
Rear Hub
CUBE K68R
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 44x622
Brakes
Brakes
Tektro HD-M285, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm | 1.54 mm | 1.56 mm | 1.54 mm |
| Front Center | 617 mm | 633 mm | 649 mm | 660 mm | 677 mm |
| Rake | 38 mm | 38 mm | 38 mm | 39 mm | 38 mm |
| Trail | 80 mm | 80 mm | 80 mm | 79 mm | 80 mm |
| Stack | 605 mm | 619 mm | 638 mm | 652 mm | 667 mm |
| Reach | 393 mm | 404 mm | 414 mm | 419 mm | 432 mm |
| Top Tube Length | 576 mm | 591 mm | 607 mm | 617 mm | 634 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1057 mm | 1073 mm | 1089 mm | 1100 mm | 1117 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

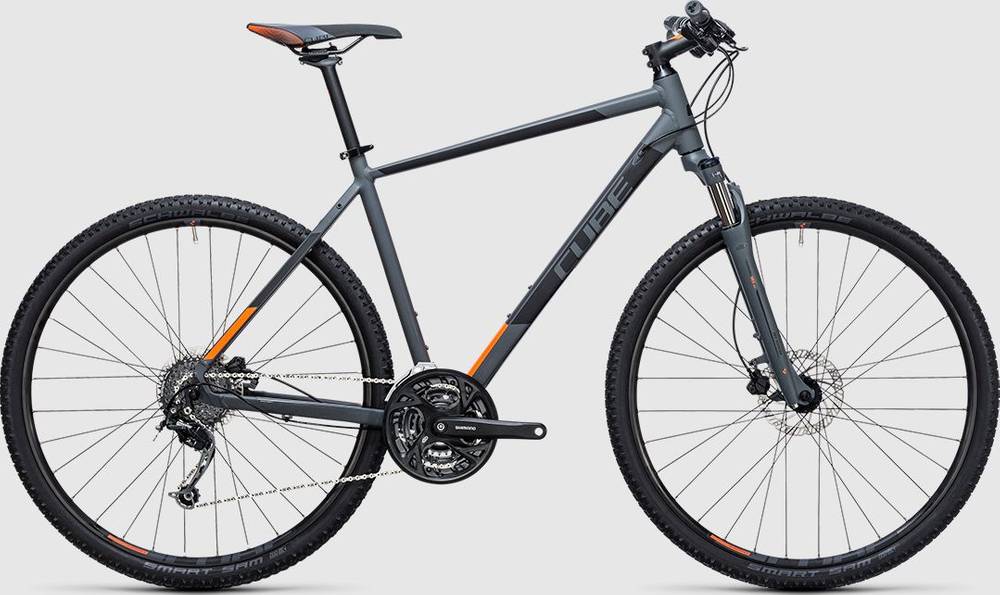

CURVE Pro completes the Cube Curve model. There are 8 bikes that carry this model name. You can easily view all of the Cube Curve bikes models from 2017, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Hybrid bikes average weight
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE CURVE Pro it’s weighing 13.5 kg (29.76 lbs). At this weight, is slightly lighter than average. In conclusion, the average Hybrid bike weighs 2.59% more than CURVE Pro.
Overview of components
Fork
CUBE CURVE Pro 2017 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the CURVE Pro bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CURVE Pro has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
