Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT Di2 -
Suspension Hardtail -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, X12, Integrated Cable Routing
Suspension Fork
Fox 32 Float Performance SC, 15QR Boost, Tapered, Remote Lockout, 100mm
Drivetrain
Rear Derailleur
Shimano XT Di2 RD-M8050-DGS, 11-Speed
Front Derailleur
Shimano XT Di2 FD-M8070, 2x11-Speed
Shift Levers
Shimano XT Di2 SW-M8050-R
Cassette
Shimano XT CS-M8000, 11-42T
Crank
Shimano XT FC-M8000, 36x26T, 175mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG900-11
Wheels
Rims
DT CSW MA 3.9 Straightpull Wheelset, 28/32 Spokes, 15mm / X12, 622x20C Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, Lite Skin
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
Syntace F109, 31.8mm
Handlebar
CUBE Flat Race Bar Pro Carbon, 740mm
Grips
CUBE SCR
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE Performance Motion Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.46 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 666 mm | 684 mm | 703 mm | 714 mm |
| Rake | 52 mm | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 81 mm | 82 mm | 79 mm | 79 mm | 80 mm |
| Stack | 613 mm | 617 mm | 629 mm | 638 mm | 652 mm |
| Reach | 394 mm | 413 mm | 432 mm | 448 mm | 455 mm |
| Top Tube Length | 579 mm | 599 mm | 622 mm | 641 mm | 652 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1077 mm | 1097 mm | 1115 mm | 1134 mm | 1145 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

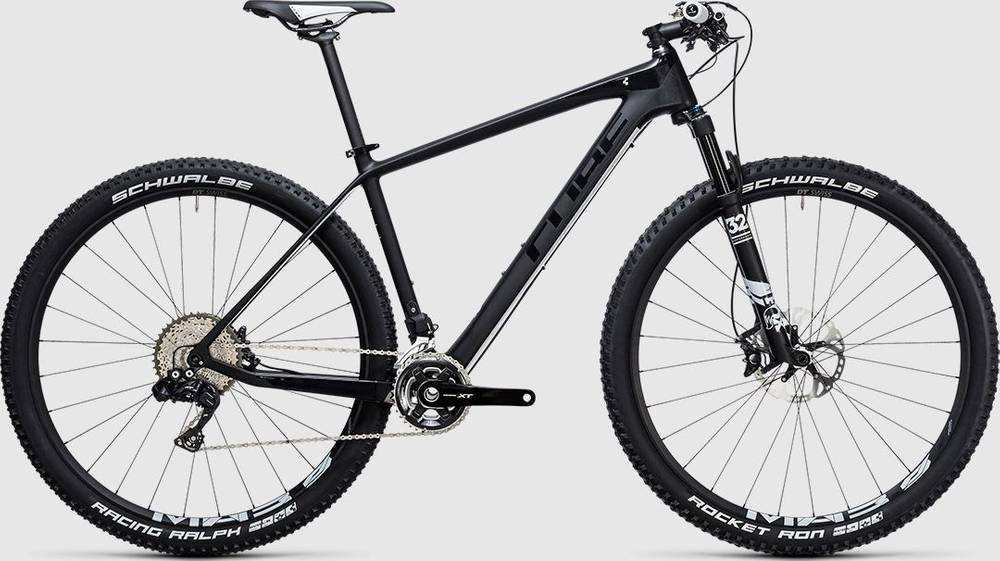

ELITE C:62 SL 29 completes the Cube Elite model. CUBE released 39 bikes variations of this model so far. Take a sneak peek at all Cube Elite bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ELITE C:62 SL 29 weighs 9.95 kg (21.94 lbs) and is much lighter than the average. In other words, this model is 24.62% lighter than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
CUBE ELITE C:62 SL 29 2017 bike is equipped with the Fox Performance Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the ELITE C:62 SL 29 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ELITE C:62 SL 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
