Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, X12, Integrated Cable Routing
Suspension Fork
Rock Shox SID RL, Fast Black, PushLoc, QR15, Tapered, 100mm
Drivetrain
Rear Derailleur
SRAM XX1, 11-Speed
Shift Levers
SRAM XX1 Trigger
Cassette
SRAM XG-1199, 10-42T
Crank
Race Face Next SL Carbon, 34T, 175mm, Oversized Aluminum Axle
Chain
KMC X11 L
Wheels
Rims
DT CSW MA 3.9 Straightpull Wheelset, 28/32 Spokes, 15mm / X12, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, Lite Skin
Brakes
Brakes
Magura MT8 (180/160)
Cockpit
Stem
Syntace F109, 31.8mm
Handlebar
Syntace Vector Carbon High10, 760mm
Grips
CUBE SCR
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Fi`zi:k Tundra M5
Seatpost
Syntace P6 Carbon Raceflex, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.46 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 666 mm | 684 mm | 703 mm | 714 mm |
| Rake | 52 mm | 51 mm | 51 mm | 51 mm | 50 mm |
| Trail | 81 mm | 82 mm | 79 mm | 79 mm | 80 mm |
| Stack | 613 mm | 617 mm | 629 mm | 638 mm | 652 mm |
| Reach | 394 mm | 413 mm | 432 mm | 448 mm | 455 mm |
| Top Tube Length | 579 mm | 599 mm | 622 mm | 641 mm | 652 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1077 mm | 1097 mm | 1115 mm | 1134 mm | 1145 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

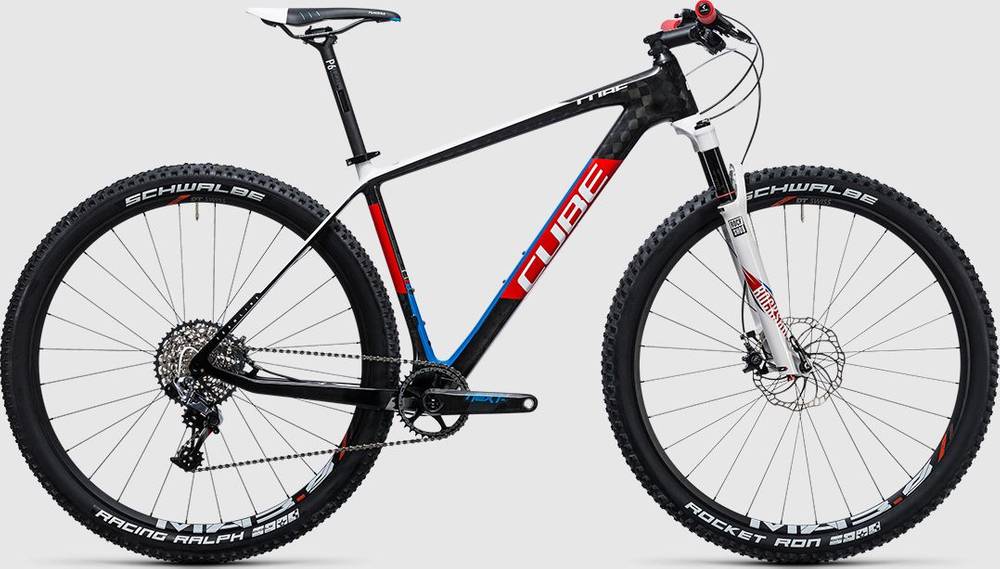

ELITE C:68 SL 29 belongs to the Cube Elite model. CUBE launched 39 bikes of this model so far. You can easily view all of the Cube Elite bikes models from 2017, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
CUBE ELITE C:68 SL 29 it’s weighing 9.15 kg (20.17 lbs). At this weight, is much lighter than average. In conclusion, the average Crosscountry bike weighs 35.52% more than ELITE C:68 SL 29.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The ELITE C:68 SL 29 comes factory-installed with the RockShox SID fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on ELITE C:68 SL 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ELITE C:68 SL 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
