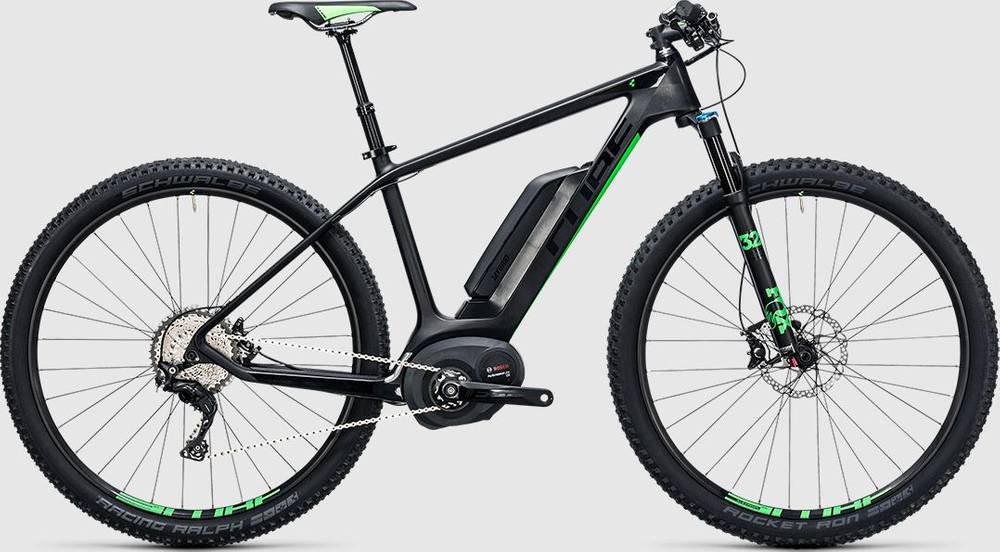

CUBE ELITE HYBRID C:62 SL 500 29 2017
2017 E-bike
Weight | 18.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62 Monocoque Advanced Twin Mold Technology
Suspension Fork
Fox 32 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, 15QR, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11e, EcoProTeQ
Wheels
Front Hub
Shimano XT HB-M8010, Centerlock, QR15
Rear Hub
Shimano XT FH-M8010, Centerlock, X12
Rims
CUBE EX21, Disc, 32H, Tubeless Ready
Tires
Schwalbe Rocket Ron, Kevlar, 2.25, LiteSkin
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE Adjustable Seatpost, Handlebar Lever, Internal Cable Routing
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.53 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 656 mm | 671 mm | 690 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 86 mm | 82 mm | 82 mm |
| Stack | 619 mm | 630 mm | 640 mm |
| Reach | 395 mm | 411 mm | 428 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 470 mm | 515 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 491 mm | 491 mm | 491 mm |
| Wheelbase | 1139 mm | 1154 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
ELITE HYBRID C:62 SL 500 29 is a Cube E Elite model. 19 e-bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 18.6 kg (41.01 lbs), the ELITE HYBRID C:62 SL 500 29 model is much lighter than average. To sum up, it’s 24.78% lighter than the average weight of Crosscountry e-bikes.
ELITE HYBRID C:62 SL 500 29 components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the ELITE HYBRID C:62 SL 500 29 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The ELITE HYBRID C:62 SL 500 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
