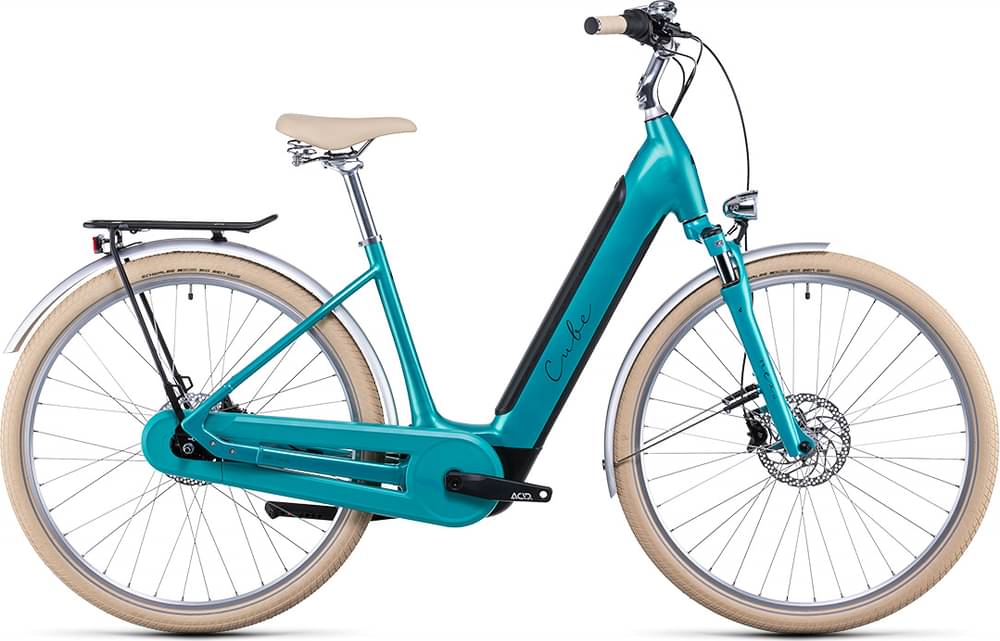

CUBE ELLA CRUISE HYBRID 500 2022
2022 E-bike
Estimate price |
2,924$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Full Integrated Battery, Slider Dropout
Suspension Fork
SR Suntour NEX-E25, 50mm
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7, Revoshift
Cassette
Shimano Nexus, 20T
Crank
ACID E-Crank, 165mm, 40T
Chain
KMC Z610
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-M4050, QR, Centerlock
Rear Hub
Shimano Nexus SG-C3001-7D, 7-Speed, Centerlock, Nut
Rims
CUBE SX24, 36H, Disc
Tires
Schwalbe Big Ben, Active, 50-622
Brakes
Brakes
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Retro
Headset
CUBE FPH885B, Semi-Integrated
Seat
Saddle
CUBE Retro
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.72 mm | 1.73 mm | 1.74 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 82 mm | 82 mm | 81 mm | 82 mm |
| Stack | 675.4 mm | 675.4 mm | 689.5 mm | 708.2 mm |
| Reach | 392.8 mm | 392.8 mm | 399.7 mm | 407.1 mm |
| Top Tube Length | 611 mm | 611 mm | 623 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 504 mm | 504 mm | 504 mm | 504 mm |
| Wheelbase | 1148 mm | 1148 mm | 1161 mm | 1175 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 433 mm | 433 mm | 432 mm | 432 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
ELLA CRUISE HYBRID 500 completes the Cube E Ella model. CUBE released 12 e-bikes variations of this model so far. Take a sneak peek at all Cube E Ella e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the CUBE ELLA CRUISE HYBRID 500 2022 has a starting price of 2706$. CUBE ELLA RIDE HYBRID 500 2022 on the other hand is the most expensive at 2706$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Comfort e-bikes
According to our math, the average price for a trustworthy Comfort e-bike is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2022 and its price was 2706$. In conclusion, this e-bike price is 38.27% more expensive than the price of the average Comfort e-bike.
Average weight for Comfort e-bikes
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, ELLA CRUISE HYBRID 500 has a weight of 26.9 kg (59.3 lbs). In conclusion, the average Comfort e-bike weighs 10.34% less than ELLA CRUISE HYBRID 500.
Overview of components
Fork
CUBE ELLA CRUISE HYBRID 500 2022 e-bike is equipped with the SunTour NEX fork, and has 50mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, CUBE ELLA CRUISE HYBRID 500 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ELLA CRUISE HYBRID 500 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
