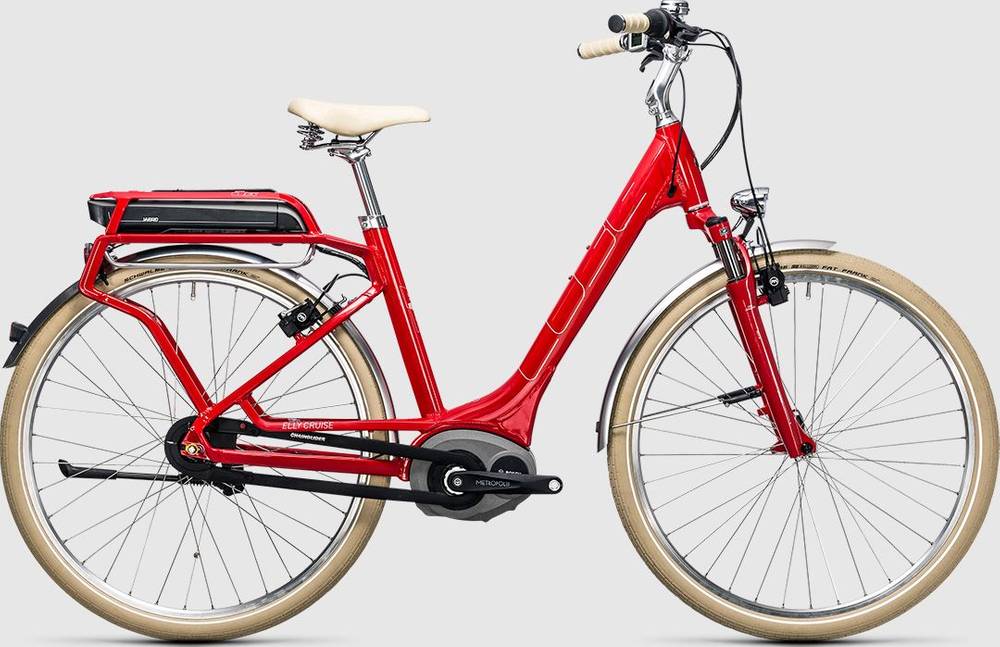

CUBE ELLY CRUISE HYBRID 400 2017
2017 E-bike
Weight | 25.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Premium Comfort, IC, Double Butted
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Shift Levers
Shimano Nexus SL-7S31, Revoshift
Crank
FSA Metropolis Urban AL-8, 18T
Chain
KMC Z610, EcoProTeQ
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-T4000, QR
Rear Hub
Shimano Nexus SG-C3000-7R, 7-Speed, Nut
Rims
CUBE SX24, V-Brake, 36H
Tires
Schwalbe Fat Frank, 50-622
Brakes
Brakes
Magura HS11, Hydr. Caliper Brake
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Urban, Silicon
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Retro
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.67 mm | 1.73 mm | 1.78 mm |
| Front Center | 638 mm | 646 mm | 652 mm | 646 mm |
| Rake | 41 mm | 42 mm | 48 mm | 32 mm |
| Trail | 87 mm | 82 mm | 69 mm | 86 mm |
| Stack | 652 mm | 654 mm | 680 mm | 706 mm |
| Reach | 379 mm | 391 mm | 394 mm | 396 mm |
| Top Tube Length | 576 mm | 589 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1118 mm | 1126 mm | 1132 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
ELLY CRUISE HYBRID 400 is part of the Cube E Elly model. CUBE launched 16 e-bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Comfort e-bikes average price
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, even if your budget is less than the average, you might still be able to get a top-quality Comfort e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Comfort e-bikes
If we make a quick analysis of the average weight of a Comfort e-bike, we get 24.38 kg (53.75 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ELLY CRUISE HYBRID 400 weighs 25.5 kg (56.22 lbs) and is slightly heavier than the average. In conclusion, the average Comfort e-bike weighs 4.59% less than ELLY CRUISE HYBRID 400.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the ELLY CRUISE HYBRID 400 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ELLY CRUISE HYBRID 400 has Hydraulic Rim brakes installed. They are a bit expensive, and don’t deliver such a great performance. In short, you can look for a bike with disk or hydraulic disk brakes.
