Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 48Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Hybrid Premium Comfort, IC, Double Butted
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M610-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M610, Rapidfire-Plus
Cassette
Shimano CS-HG50, 11-36T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X10
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-M4050, QR, Centerlock
Rear Hub
Shimano FH-M4050, QR, Centerlock
Rims
CUBE SX24, Disc, 36H
Tires
Schwalbe Fat Frank, 50-622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Urban, Silicon
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
CUBE Retro
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active (48Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.67 mm | 1.73 mm | 1.78 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 638 mm | 646 mm | 652 mm | 646 mm |
| Rake | 41 mm | 42 mm | 48 mm | 32 mm |
| Trail | 82 mm | 78 mm | 65 mm | 82 mm |
| Stack | 652 mm | 654 mm | 680 mm | 706 mm |
| Reach | 379 mm | 391 mm | 394 mm | 396 mm |
| Top Tube Length | 576 mm | 589 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 160 mm | 185 mm | 210 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1118 mm | 1126 mm | 1132 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview

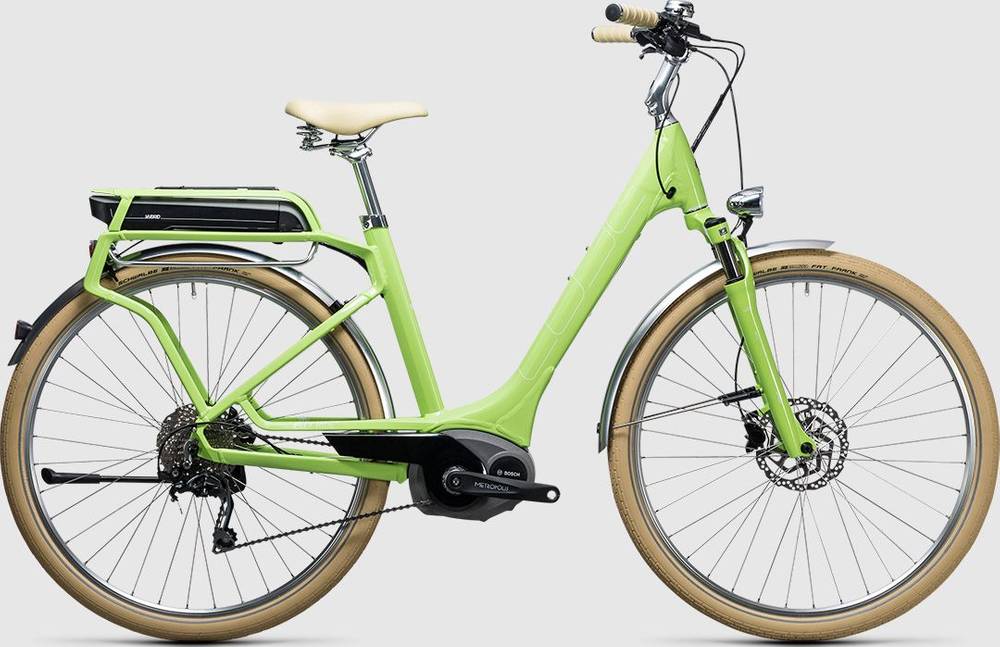

ELLY RIDE HYBRID 500 is a Cube E Elly model. 16 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Touring e-bikes average weight
The average weight for Touring e-bikes is 25.55 kg (56.33 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ELLY RIDE HYBRID 500 weighs 24.9 kg (54.9 lbs) and is slightly lighter than the average. To sum up, it’s 2.61% lighter than the average weight of Touring e-bikes.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the ELLY RIDE HYBRID 500 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE ELLY RIDE HYBRID 500 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
