Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Sport, IC 2.0, Double Butted, Disc Only
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano RD-M4000-DSGS, 9-Speed
Shift Levers
Shimano SL-M2000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA Metropolis Comfort, 38T, Chainguard
Chain
KMC X9
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-M4050, QR, Centerlock
Rear Hub
Shimano FH-M4050, QR, Centerlock
Rims
CUBE SX24, Disc, 36H
Tires
Schwalbe Little Big Ben, Active, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Urban, Silicon
Headset
FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Retro
Seatpost
CUBE Performance Post, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.65 mm | 1.65 mm | 1.7 mm |
| Front Center | 636 mm | 644 mm | 654 mm | 666 mm |
| Rake | 42 mm | 42 mm | 39 mm | 36 mm |
| Trail | 86 mm | 82 mm | 86 mm | 89 mm |
| Stack | 626 mm | 638 mm | 652 mm | 680 mm |
| Reach | 378 mm | 387 mm | 395 mm | 400 mm |
| Top Tube Length | 570 mm | 581 mm | 592 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 165 mm | 195 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm | 479 mm |
| Wheelbase | 1106 mm | 1114 mm | 1124 mm | 1136 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |

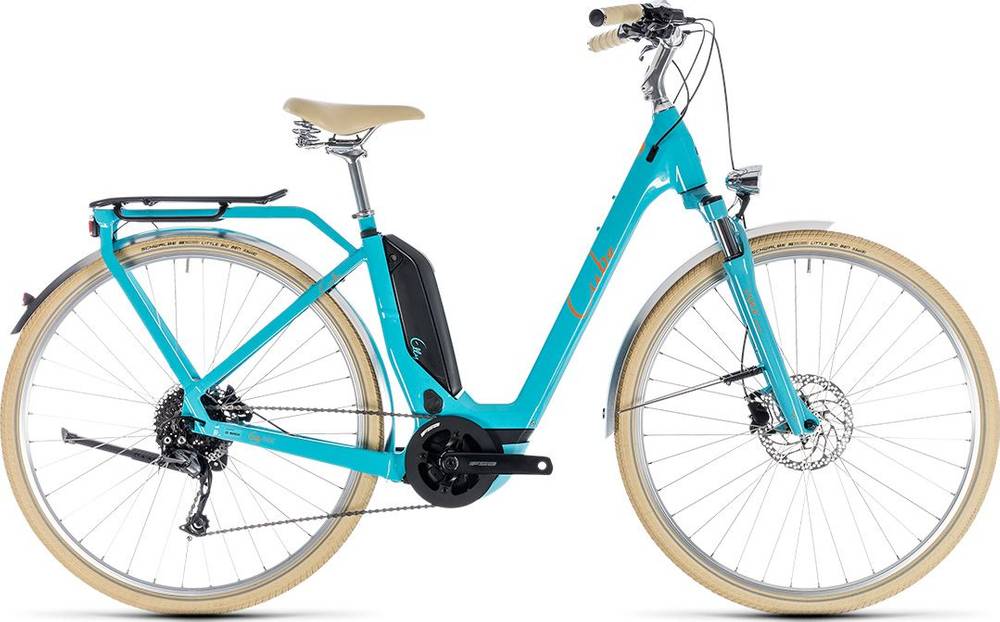

About this model
ELLY RIDE HYBRID 500 completes the Cube E Elly model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Comfort e-bikes
According to our calculations, the average cost of a Comfort e-bike that is reliable is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Comfort e-bikes
On a deeper look, we notice that the average weight of a Comfort e-bike is 24.38 kg (53.75 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, ELLY RIDE HYBRID 500 has a weight of 24.1 kg (53.13 lbs). In short, the average Comfort e-bike weight is 1.16% higher than this one.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, CUBE ELLY RIDE HYBRID 500 2018, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
