Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset Deore, Sora -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Urban 29 Double Butted
Suspension Fork
Aluminium Rigid Fork 29" Tapered
Drivetrain
Rear Derailleur
Shimano Deore RD-M592, 9-Speed
Front Derailleur
Shimano FD-T3000, Topswing, 31.8mm
Shift Levers
Shimano SL-M3000, Rapidfire-Plus
Cassette
Shimano CS-HG200, 11-34T
Crank
Shimano FC-M371, 48x36x26T, 175mm, Chainguard
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE UX24, 32H, Disc, Tubeless Ready
Tires
Schwalbe Big Apple, Active, 29x2.15
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
CUBE Performance Grip
Headset
CUBE H863, Semi-Integrated
Seat
Saddle
Selle Royal Prestige
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm | 1.64 mm |
| Front Center | 637 mm | 637 mm | 637 mm | 647 mm | 658 mm |
| Rake | 44 mm | 44 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 75 mm | 68 mm | 68 mm | 68 mm |
| Stack | 581 mm | 604 mm | 627 mm | 646 mm | 669 mm |
| Reach | 398 mm | 400 mm | 402 mm | 405 mm | 408 mm |
| Top Tube Length | 557 mm | 571 mm | 586 mm | 601 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm | 175 mm | 200 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1104 mm | 1104 mm | 1104 mm | 1114 mm | 1125 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |

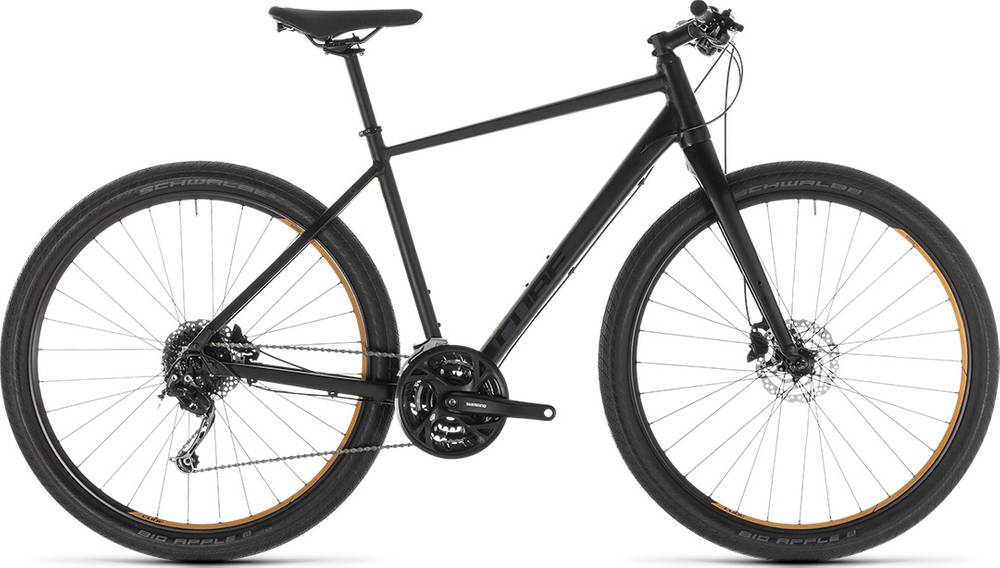

About this model
HYDE completes the Cube Hyde model. 33 bikes variations carry this model name so far. You can easily view all of the Cube Hyde bikes models from 2019, here.
Model range prices
CUBE HYDE Trapeze 2019 is the most affordable bike of this model and has a price of 689$. On the other hand, CUBE HYDE Race 2019, is the most expensive and costs 1061$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring bikes
According to our math, the average price for a trustworthy Touring bike is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, CUBE HYDE price was 689$. If we compare this with the average Touring bike cost we notice that the price is 46.15% lower.
Touring bikes average weight
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.3 kg (29.32 lbs), CUBE bike is slightly lighter than average. In other words, this model is 0.38% lighter than the average Touring bike.
HYDE components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the HYDE bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
