Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Urban Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S7000
Cassette
Gates CDN, 22T
Crank
Gates S150 CDN, 46T, 170mm, BB Thun Zumba
Chain
Gates CDN, 111T
Pedals
VP 615M
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Alfine SG-S700, 8-Speed, Nut, Centerlock
Rims
CUBE UX24, 32H, Disc
Tires
Schwalbe Road Cruiser, Active, 42x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
CUBE Natural Fit Tour
Headset
FSA No.10, Semi-Integrated
Seat
Saddle
Selle Royal Prestige
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.44 mm |
| Front Center | 632 mm | 633 mm | 639 mm |
| Rake | 53 mm | 54 mm | 54 mm |
| Trail | 71 mm | 63 mm | 57 mm |
| Stack | 553 mm | 571 mm | 593 mm |
| Reach | 399 mm | 403 mm | 412 mm |
| Top Tube Length | 566 mm | 576 mm | 592 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1058 mm | 1059 mm | 1065 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 |
About this model

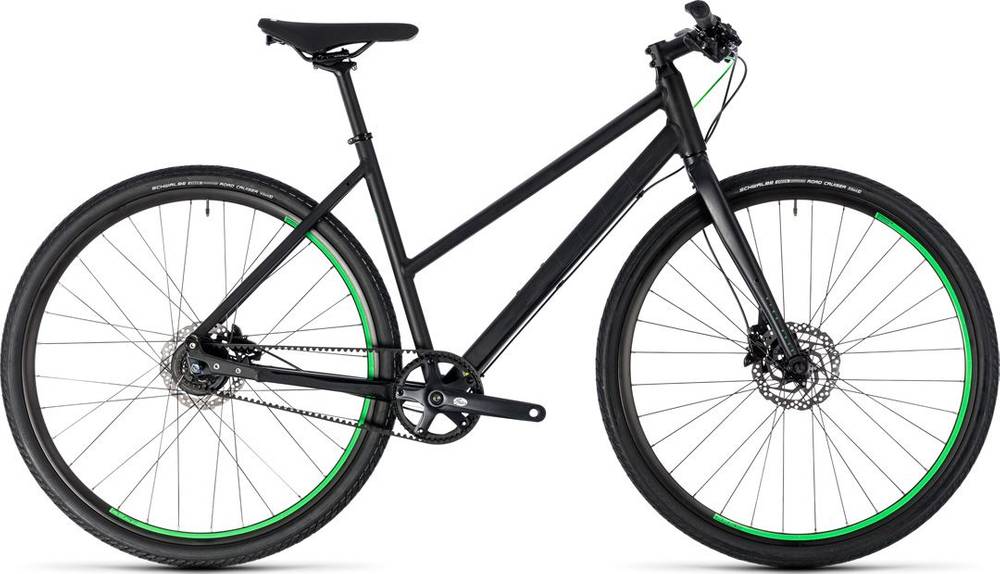

HYDE Race Trapeze belongs to the Cube Hyde model. CUBE released 33 bikes variations of this model so far. Take a sneak peek at all Cube Hyde bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Hybrid bikes average weight
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.9 kg (26.23 lbs), CUBE bike is much lighter than average. In short, the average Hybrid bike weight is 16.39% higher than this one.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The HYDE Race Trapeze 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE HYDE Race Trapeze has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
