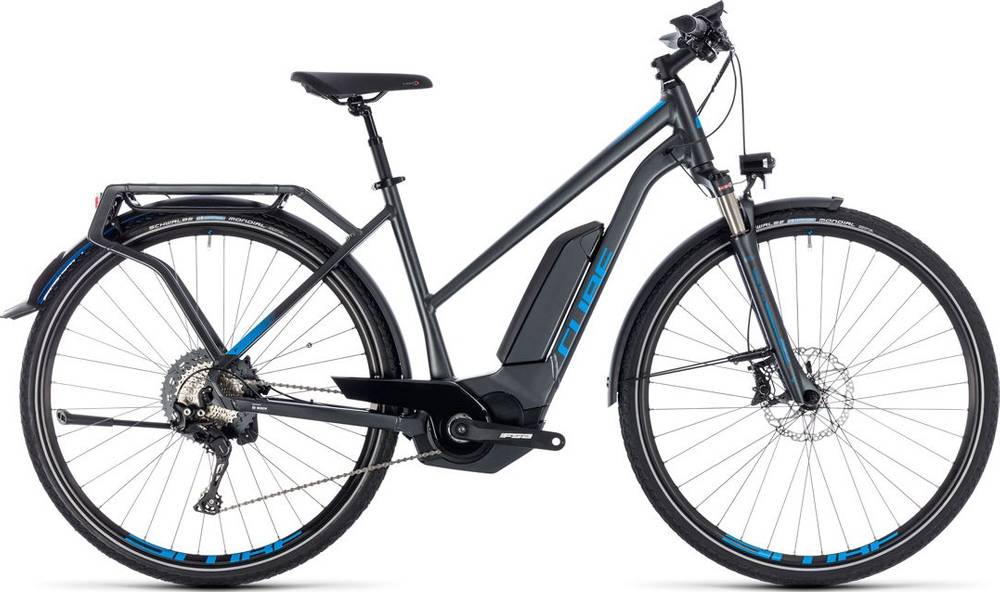

CUBE KATHMANDU HYBRID Exc 500 Trapeze 2018
2018 E-bike
Weight | 23 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Gravity Casting, IC 1.0, Double Butted, Tapered, Disc Only
Suspension Fork
SR Suntour NCX D LO Air, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Marathon Mondial, Performance, Double Defense, 42-622
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit Z-t-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal Lookin Moderate, Royalgel™
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 86 mm | 82 mm | 70 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
KATHMANDU HYBRID Exc 500 Trapeze is a Cube E Kathmandu model. 59 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, KATHMANDU HYBRID Exc 500 Trapeze has a weight of 23 kg (50.71 lbs). In short, the average Hybrid e-bike weight is 3.43% higher than this one.
Overview of components
Fork
This e-bike has the SunTour NCX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on KATHMANDU HYBRID Exc 500 Trapeze are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE KATHMANDU HYBRID Exc 500 Trapeze is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
