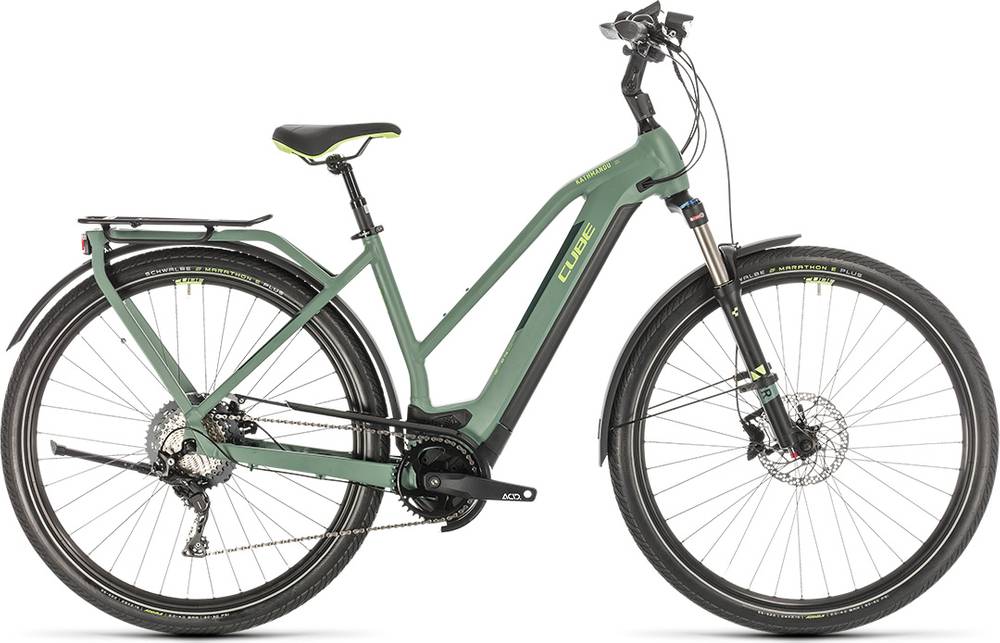

CUBE KATHMANDU HYBRID EXC 625 Trapeze 2020
2020 E-bike
Estimate price |
3,576$
Weight | 26.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerTube 625 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour XCR32 LO-R Air, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT, 11-46T, 1x11
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
ACID E-Crank, 38T
Chain
KMC X11
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Marathon E-Plus, 55-622
Brakes
Brakes
Shimano BR-MT420/MT400
Cockpit
Stem
Satori Up2 Plus, 31.8mm, Adjustable
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence+ Comfort
Seatpost
CUBE Suspension Seatpost, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerTube 625
Remote
Intuvia
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.56 mm |
| Front Center | 688 mm | 693 mm | 704 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 83 mm | 83 mm | 83 mm |
| Stack | 638 mm | 648 mm | 657 mm |
| Reach | 414 mm | 415 mm | 422 mm |
| Top Tube Length | 586 mm | 596 mm | 606 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 114 mm | 125 mm | 134 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1146 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 731 mm | 738 mm | 750 mm |
| Wheels | 700 | 700 | 700 |
About this model
KATHMANDU HYBRID EXC 625 Trapeze belongs to the Cube E Kathmandu model. CUBE released 59 e-bikes variations of this model so far. Take a sneak peek at all Cube E Kathmandu e-bikes models from 2020, by clicking here.
Model range prices
The most economical model, the CUBE KATHMANDU HYBRID ONE 500 2020 has a starting price of 2587$. CUBE KATHMANDU HYBRID 45 625 2020 on the other hand is the most expensive at 4139$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3311$. In conclusion, this e-bike price is 33.51% more expensive than the price of the average Hybrid e-bike.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, KATHMANDU HYBRID EXC 625 Trapeze has a weight of 26.5 kg (58.42 lbs). To sum up, it’s 11.39% heavier than the average weight of Hybrid e-bikes.
KATHMANDU HYBRID EXC 625 Trapeze components
Fork
The fork installed on this bike is the SunTour XCR 32 Air model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The KATHMANDU HYBRID EXC 625 Trapeze 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE KATHMANDU HYBRID EXC 625 Trapeze is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
