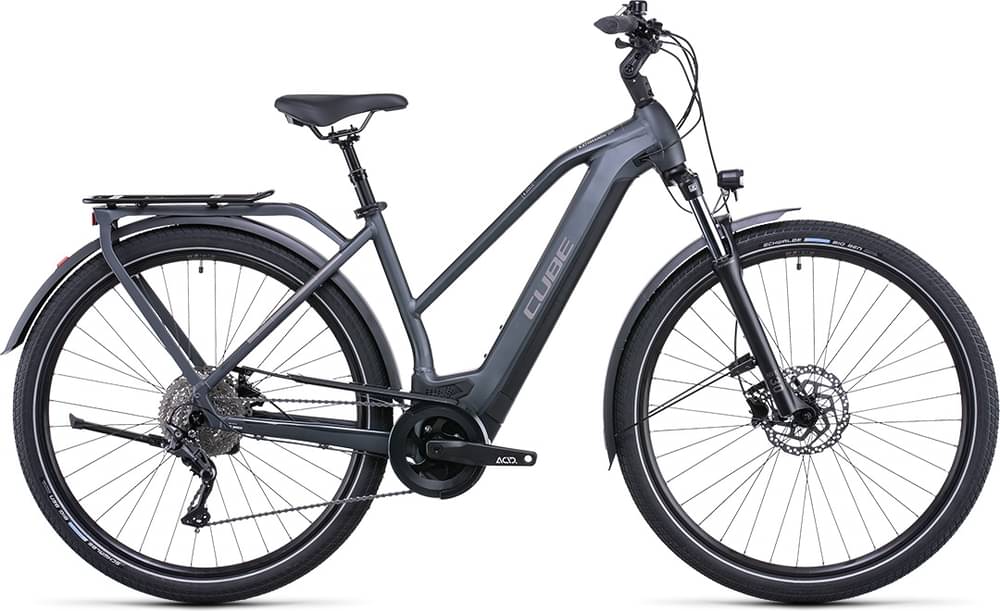

CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022
2022 E-bike
Estimate price |
3,096$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork SunTour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Shimano Deore CS-M4100, 11-42T
Crank
ACID E-Crank, 38T, 175mm (EE: 170mm)
Chain
KMC X10
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.57 mm | 1.56 mm |
| Front Center | 689 mm | 693 mm | 704 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 83 mm | 83 mm | 82 mm |
| Stack | 638.6 mm | 648.7 mm | 656.3 mm |
| Reach | 413.6 mm | 414.5 mm | 421.7 mm |
| Top Tube Length | 586 mm | 596.1 mm | 606.3 mm |
| Seat Tube Angle | 72 ° | 71.3 ° | 71.3 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 114 mm | 125 mm | 134 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1146 mm | 1151 mm | 1161 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 783 mm | 781 mm | 782 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
KATHMANDU HYBRID ONE 500 Trapeze belongs to the Cube E Kathmandu model. CUBE released 59 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2022 is the cheapest e-bike model and costs 2866$. CUBE KATHMANDU HYBRID SLT 750 Trapeze 2022 is the most expensive one and costs 4565$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 2866$. Doing a quick comparison, we notice that KATHMANDU HYBRID ONE 500 Trapeze price is 15.56% higher than the average cost of a Hybrid e-bike.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE KATHMANDU HYBRID ONE 500 Trapeze it’s weighing 25.5 kg (56.22 lbs). At this weight, is a bit heavier than average. In conclusion, the average Hybrid e-bike weighs 7.19% less than KATHMANDU HYBRID ONE 500 Trapeze.
KATHMANDU HYBRID ONE 500 Trapeze components
Fork
This e-bike has the SunTour fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The KATHMANDU HYBRID ONE 500 Trapeze 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE KATHMANDU HYBRID ONE 500 Trapeze has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
CUBE KATHMANDU HYBRID ONE 500 Trapeze e-bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
