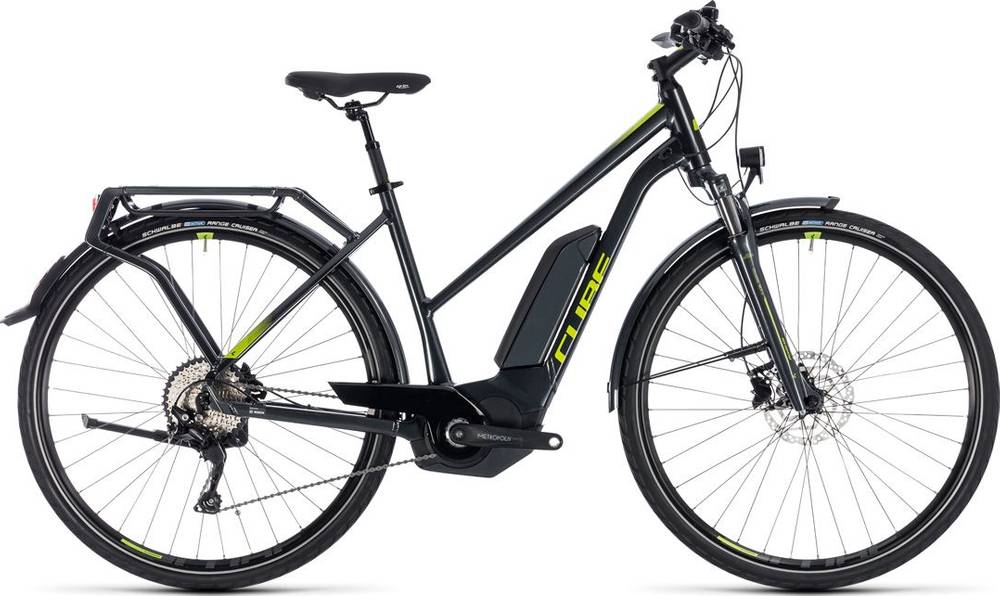

CUBE KATHMANDU HYBRID Pro 500 Trapeze 2018
2018 E-bike
Weight | 24 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Premium Comfort, Gravity Casting, IC 1.0, Double Butted, Tapered, Disc Only
Suspension Fork
SR Suntour NEX-E25, 63mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA Metropolis Urban AL-8, 15T
Chain
KMC X10
Pedals
CUBE PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE SX20, 36H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 40x622
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit Z-t-R ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"
Seat
Saddle
Selle Royal Ariel
Seatpost
CUBE Suspension Seatpost, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.6 mm | 1.68 mm |
| Front Center | 637 mm | 644 mm | 651 mm |
| Rake | 42 mm | 42 mm | 47 mm |
| Trail | 86 mm | 82 mm | 70 mm |
| Stack | 631 mm | 633 mm | 668 mm |
| Reach | 384 mm | 396 mm | 397 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1106 mm | 1113 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
Model Overview
KATHMANDU HYBRID Pro 500 Trapeze is part of the Cube E Kathmandu model. CUBE launched 59 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 24 kg (52.91 lbs), the KATHMANDU HYBRID Pro 500 Trapeze model is slightly heavier than average. In conclusion, the average Hybrid e-bike weighs 0.88% less than KATHMANDU HYBRID Pro 500 Trapeze.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the KATHMANDU HYBRID Pro 500 Trapeze model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE KATHMANDU HYBRID Pro 500 Trapeze has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
