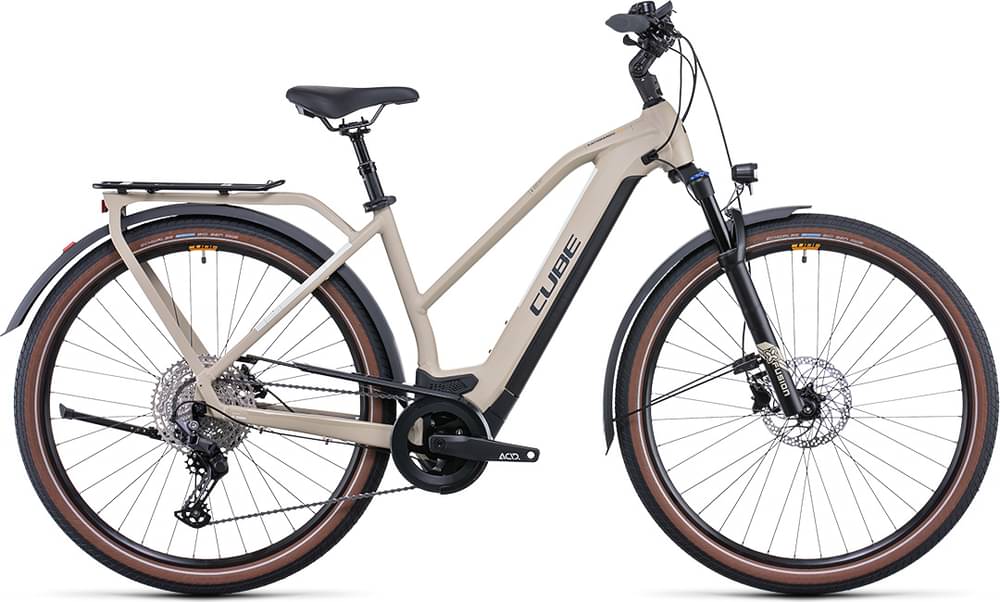

CUBE KATHMANDU HYBRID PRO 625 Trapeze 2021
2021 E-bike
Estimate price |
3,554$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork X Fusion
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Suspension Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire-Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 38T, 175mm (EE: 170mm)
Chain
KMC X11
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
Natural Fit Comfort
Headset
M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Remote
Bosch Intuvia
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.56 mm |
| Front Center | 688 mm | 693 mm | 704 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 83 mm | 83 mm | 82 mm |
| Stack | 638 mm | 648 mm | 657 mm |
| Reach | 414 mm | 415 mm | 422 mm |
| Top Tube Length | 586 mm | 596 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 114 mm | 125 mm | 134 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1146 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 731 mm | 738 mm | 750 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
KATHMANDU HYBRID PRO 625 Trapeze is a Cube E Kathmandu model. 59 e-bikes variations carry this model name so far. You can easily view all of the Cube E Kathmandu e-bikes models from 2021, here.
Model range prices
CUBE KATHMANDU HYBRID ONE 500 Trapeze 2021 is the cheapest e-bike model and costs 2866$. CUBE KATHMANDU HYBRID SLT 625 2021 is the most expensive one and costs 4512$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When CUBE released this model in 2021, its price was 3290$. In conclusion, this e-bike price is 32.66% higher than the price of the average Hybrid e-bike.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE KATHMANDU HYBRID PRO 625 Trapeze it’s weighing 26.6 kg (58.64 lbs). At this weight, is considerably heavier than average. In conclusion, the average Hybrid e-bike weighs 11.81% less than KATHMANDU HYBRID PRO 625 Trapeze.
KATHMANDU HYBRID PRO 625 Trapeze components
Fork
The KATHMANDU HYBRID PRO 625 Trapeze comes factory-installed with the X Fusion fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the KATHMANDU HYBRID PRO 625 Trapeze model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The KATHMANDU HYBRID PRO 625 Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
KATHMANDU HYBRID PRO 625 Trapeze comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
