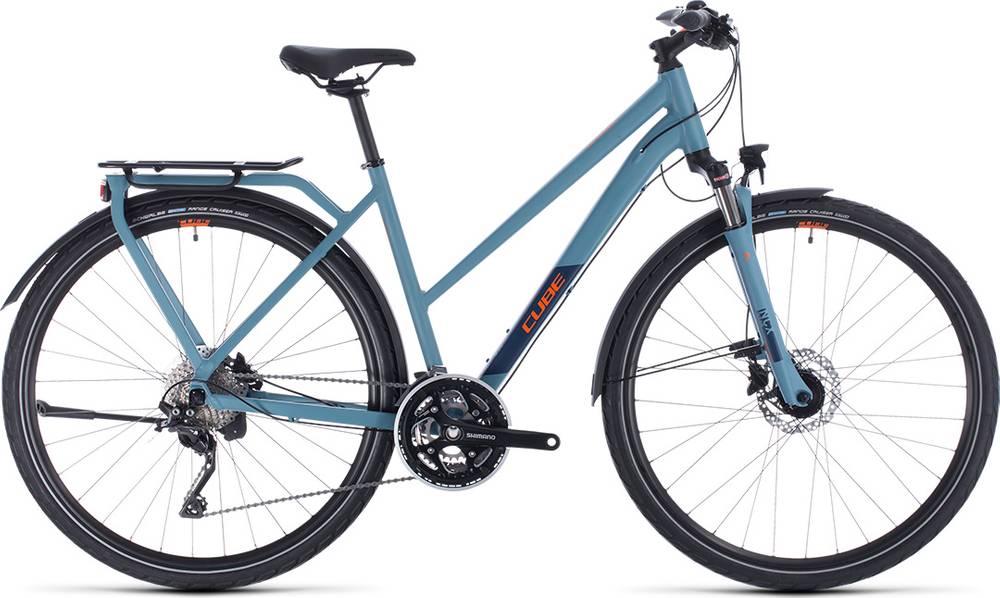

CUBE KATHMANDU PRO Trapeze 2020
2020 Urban
Estimate price |
1,117$
Weight | 15.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour NCX D LO Air, 63mm
Drivetrain
Rear Derailleur
Shimano XT, 11-34T, 3x10
Front Derailleur
Shimano Deore FD-T6000, Top-Swing, 31.8mm
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano CS-HG500, 11-34T
Crank
Shimano FC-T551, 48x36x26T
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano Deore FH-M6000,QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Range Cruiser, Active, K-Guard, 47-622
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
Natural Fit Comfort
Headset
CUBE FPH863, Semi-Integrated
Seat
Saddle
Natural Fit Sequence + Comfort
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.66 mm | 1.73 mm |
| Front Center | 620 mm | 629 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 623 mm | 626 mm | 659 mm |
| Reach | 362 mm | 376 mm | 381 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 545 mm | 541 mm | 582 mm |
| Wheels | 700 | 700 | 700 |
About this model
KATHMANDU PRO Trapeze completes the Cube Kathmandu model. CUBE released 33 bikes variations of this model so far. You can easily view all of the Cube Kathmandu bikes models from 2020, here.
Model range prices
CUBE KATHMANDU PRO Trapeze 2020 is the cheapest bike model and costs 1034$. CUBE KATHMANDU SL Trapeze 2020 is the most expensive one and costs 1758$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 1034$. Doing a quick comparison, we notice that KATHMANDU PRO Trapeze price is 83.99% higher than the average cost of a Hybrid bike.
Average weight for Hybrid bikes
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 15.8 kg (34.83 lbs), the KATHMANDU PRO Trapeze model is considerably heavier than average. To sum up, it’s 14.08% heavier than the average weight of Hybrid bikes.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on KATHMANDU PRO Trapeze are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The KATHMANDU PRO Trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
