Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite Trekking Comfort IC 2.0 Double Butted
Suspension Fork
RockShox Paragon Gold, 65mm
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano XT FD-T8000, Top Swing, 31.8mm
Shift Levers
Shimano XT SL-T8000
Cassette
Shimano CS-M771, 11-34T
Crank
Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG95
Pedals
Trekking Gummiert
Wheels
Front Hub
Shimano XT DH-T8000, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Supreme, Kevlar, 42x622
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Natural Fit Comfort
Headset
FSA Orbit Z semi-integrated 1 1/8"
Seat
Saddle
Selle Royal Lookin Moderate, Royalgel™
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.66 mm | 1.73 mm |
| Front Center | 620 mm | 629 mm | 645 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 623 mm | 626 mm | 659 mm |
| Reach | 362 mm | 376 mm | 381 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 185 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1050 mm | 1059 mm | 1075 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |

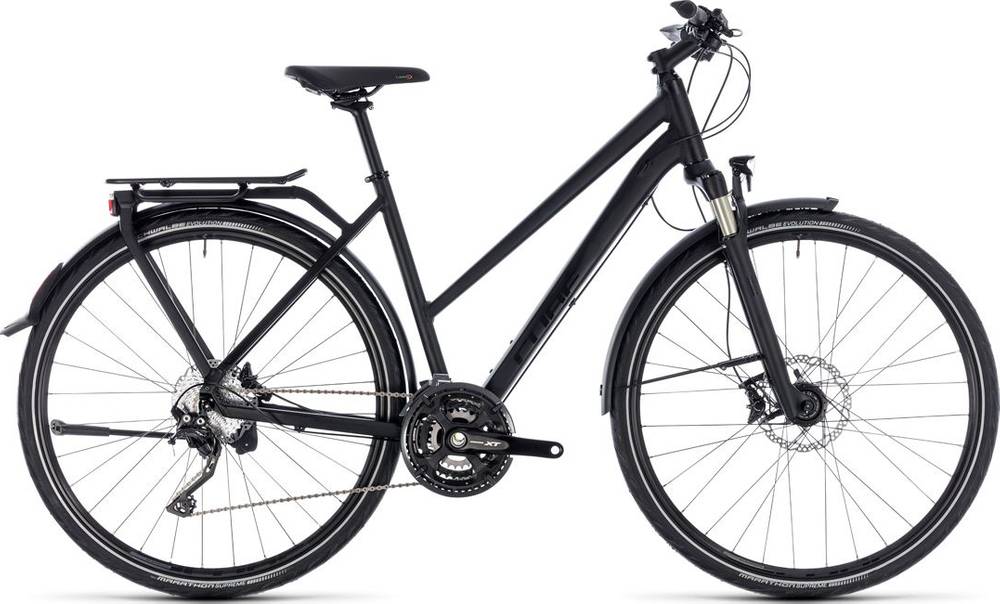

About this model
KATHMANDU SL Trapeze is a Cube Kathmandu model. CUBE released 33 bikes variations of this model so far. Take a sneak peek at all Cube Kathmandu bikes models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, you could also get a good Hybrid bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid bikes
The average weight for Hybrid bikes is 13.85 kg (30.53 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
KATHMANDU SL Trapeze weighs 14.3 kg (31.53 lbs) and is slightly heavier than the average. To sum up, it’s 3.25% heavier than the average weight of Hybrid bikes.
KATHMANDU SL Trapeze components
Fork
The RockShox Paragon Gold RL is included from the factory. It has a travel distance of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The KATHMANDU SL Trapeze 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE KATHMANDU SL Trapeze has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
