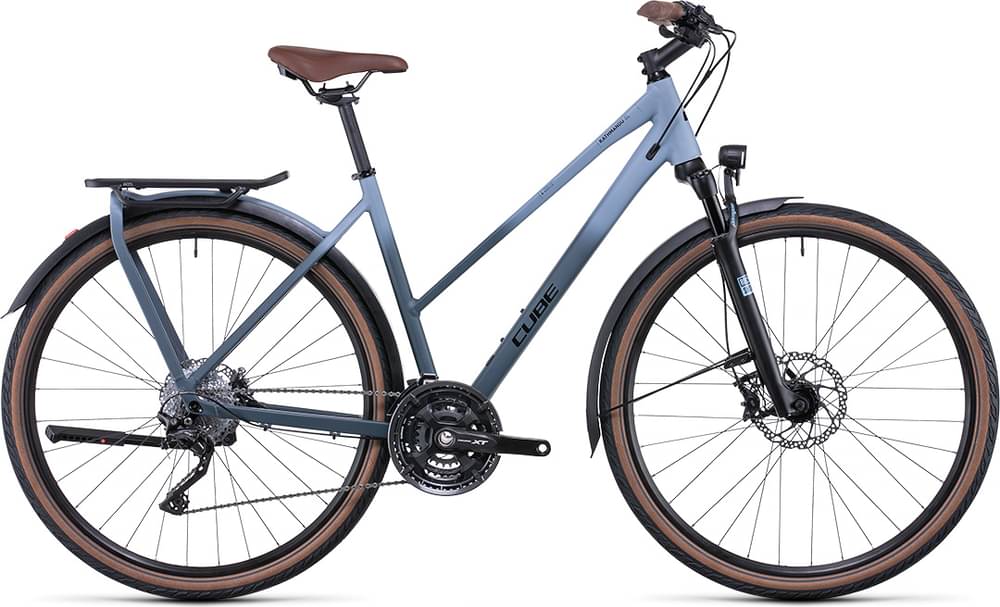

CUBE KATHMANDU SL Trapeze 2022
2022 Urban
Estimate price |
2,121$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, IC 3.0, Double Butted
Suspension Fork
RockShox Paragon Gold Fast Black, 65mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-T8000, 10-Speed
Front Derailleur
Shimano XT FD-T8000, Top Swing, 31.8mm
Shift Levers
Shimano XT SL-T8000
Cassette
Shimano CS-M771, 11-34T
Crank
Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG95
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-MT400, 12mm, Centerlock
Rims
CUBE EX21, 32H, Disc, Tubeless Ready
Tires
Continental Pure Contact, 47x622, Foldable
Brakes
Brakes
Shimano XT, Hydr. Disc Brake, PM/FM (180/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
Natural Fit Comfort
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.7 mm | 1.76 mm |
| Front Center | 620 mm | 629 mm | 646 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 76 mm | 76 mm |
| Stack | 632.5 mm | 634.7 mm | 667.8 mm |
| Reach | 359.2 mm | 373.5 mm | 378.4 mm |
| Top Tube Length | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 153 mm | 153 mm | 188 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1060 mm | 1069 mm | 1085 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 682 mm | 722 mm | 746 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
KATHMANDU SL Trapeze completes the Cube Kathmandu model. CUBE released 33 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE KATHMANDU PRO Trapeze 2022 is the most affordable bike of this model and has a price of 1114$. On the other hand, CUBE KATHMANDU, SLX 2022, is the most expensive and costs 2123$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1963$. In conclusion, this bike price is 249.29% higher than the price of the average Hybrid bike.
Average weight for Hybrid bikes
Hybrid bikes weigh an average of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
KATHMANDU SL Trapeze weighs 14.5 kg (31.97 lbs) and is slightly heavier than the average. In conclusion, the average Hybrid bike weighs 4.69% less than KATHMANDU SL Trapeze.
Overview of components
Fork
CUBE KATHMANDU SL Trapeze 2022 bike is equipped with the RockShox Paragon Gold RL fork, and has 65mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on KATHMANDU SL Trapeze are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
KATHMANDU SL Trapeze comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
