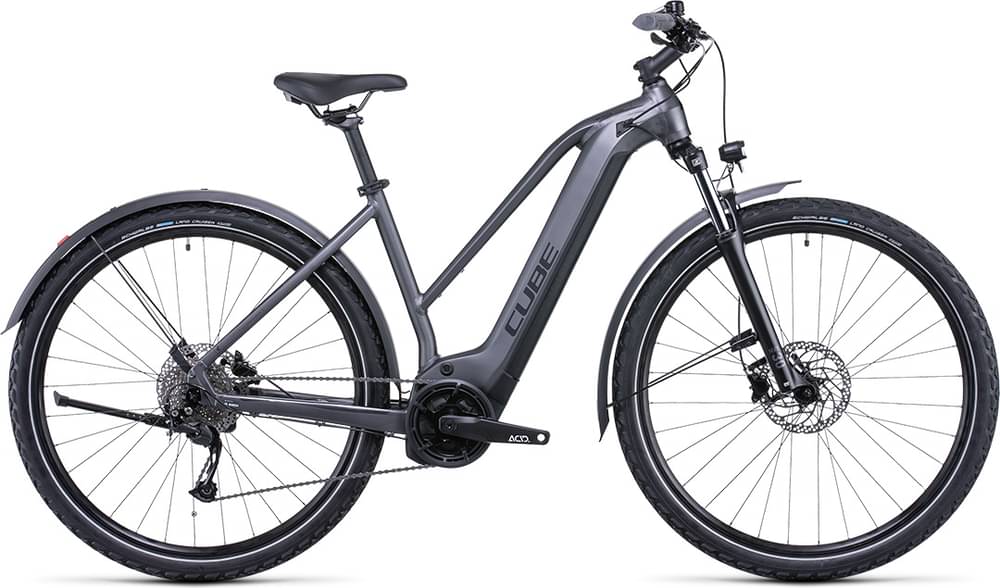

CUBE NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze 2022
2022 E-bike
Estimate price |
2,809$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour
-
Groupset Sora -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Agile Comfort Geometry, Tapered Headtube, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 38T, 175mm (EE: 170mm)
Chain
KMC X9
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Land Cruiser, Active, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 720mm
Grips
Natural Fit All Terrain
Headset
M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.58 mm | 1.6 mm |
| Front Center | 660 mm | 672 mm | 684 mm |
| Rake | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 76 mm |
| Stack | 632.5 mm | 642.2 mm | 660.6 mm |
| Reach | 398.6 mm | 406.6 mm | 412.6 mm |
| Top Tube Length | 590 mm | 601 mm | 612 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1145 mm | 1157 mm | 1169 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 802 mm | 776 mm | 786 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model
NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze is a Cube E Nuride model. 41 e-bikes variations carry this model name so far. Take a sneak peek at all Cube E Nuride e-bikes models from 2022, by clicking here.
Model range prices
CUBE NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze 2022 is the cheapest e-bike model and costs 2600$. CUBE NURIDE HYBRID SLT 750 ALLROAD 2022 is the most expensive one and costs 4352$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When CUBE released this model in 2022, its price was 2600$. Comparing this to the average Hybrid e-bike price, we see that the price is 4.84% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.8 kg (54.67 lbs), CUBE e-bike is slightly heavier than average. In short, the average Hybrid e-bike weight is 4.25% lower than this one.
NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze components
Fork
CUBE NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze 2022 e-bike is equipped with the SunTour fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE NURIDE HYBRID PERFORMANCE 500 ALLROAD Trapeze has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
