Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Bluto RL
-
Groupset X1, GX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Superlite, Advanced Hydroforming, Triple Butted, ARG, Tapered Head Tube, Internal Cable Routing, PressFit BB
Suspension Fork
Rock Shox Bluto RL Solo Air, 100mm
Drivetrain
Rear Derailleur
SRAM X1, Type2, 11-Speed
Shift Levers
SRAM GX Trigger
Cassette
SRAM XG-1150, 10-42T
Crank
Race Face ?ffect, 28T, Fat Bike Axle, PressFit
Chain
SRAM 11-Speed
Wheels
Rims
Answer FAT Atac, 15x150mm / 12x197mm, 80mm Tubeless-Ready Rim
Tires
Schwalbe Jumbo Jim, Kevlar, 4.4"
Brakes
Brakes
Shimano BR-M506, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-1, Semi-Integrated, Top 1 1/8" Bottom 1 1/2"
Seat
Saddle
CUBE Active 1.1
Seatpost
CUBE Perfomance Post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Front Center | 654 mm | 671 mm | 693 mm | 713 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 629 mm | 629 mm | 638 mm | 647 mm |
| Reach | 385 mm | 402 mm | 421 mm | 437 mm |
| Top Tube Length | 574 mm | 591.5 mm | 613 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 515 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1093 mm | 1110 mm | 1132 mm | 1152 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

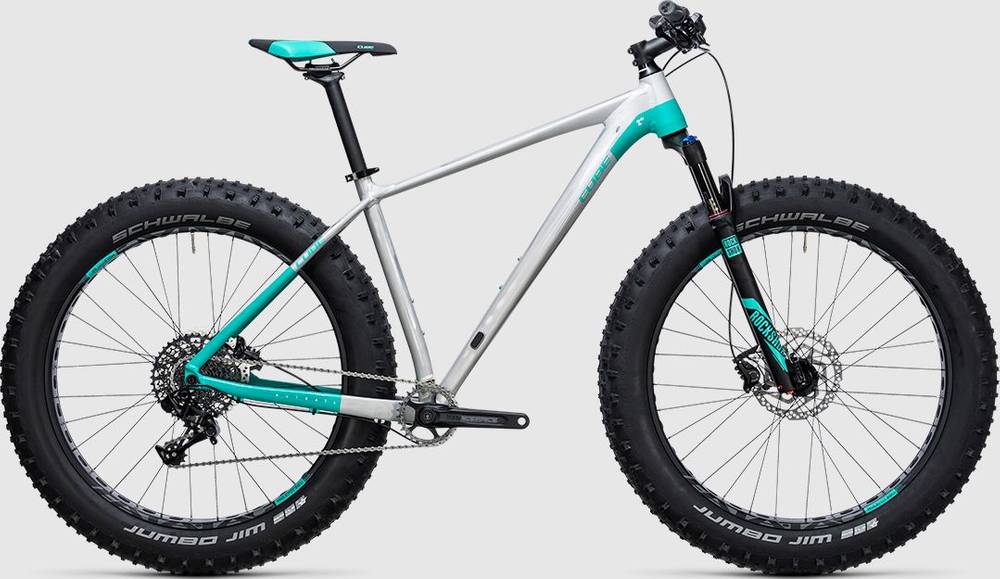

NUTRAIL Pro is a Cube Nutrail model. CUBE released 10 bikes variations of this model so far. Take a sneak peek at all Cube Nutrail bikes models from 2017, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Fatbike bikes average weight
If we make a quick analysis of the average weight of a Fatbike bike, we get 13.2 kg (29.1 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14.6 kg (32.19 lbs), CUBE bike is considerably heavier than average. To sum up, it’s 10.61% heavier than the average weight of Fatbike bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
NUTRAIL Pro components
Fork
The NUTRAIL Pro comes factory-installed with the RockShox Bluto RL fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the NUTRAIL Pro model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
