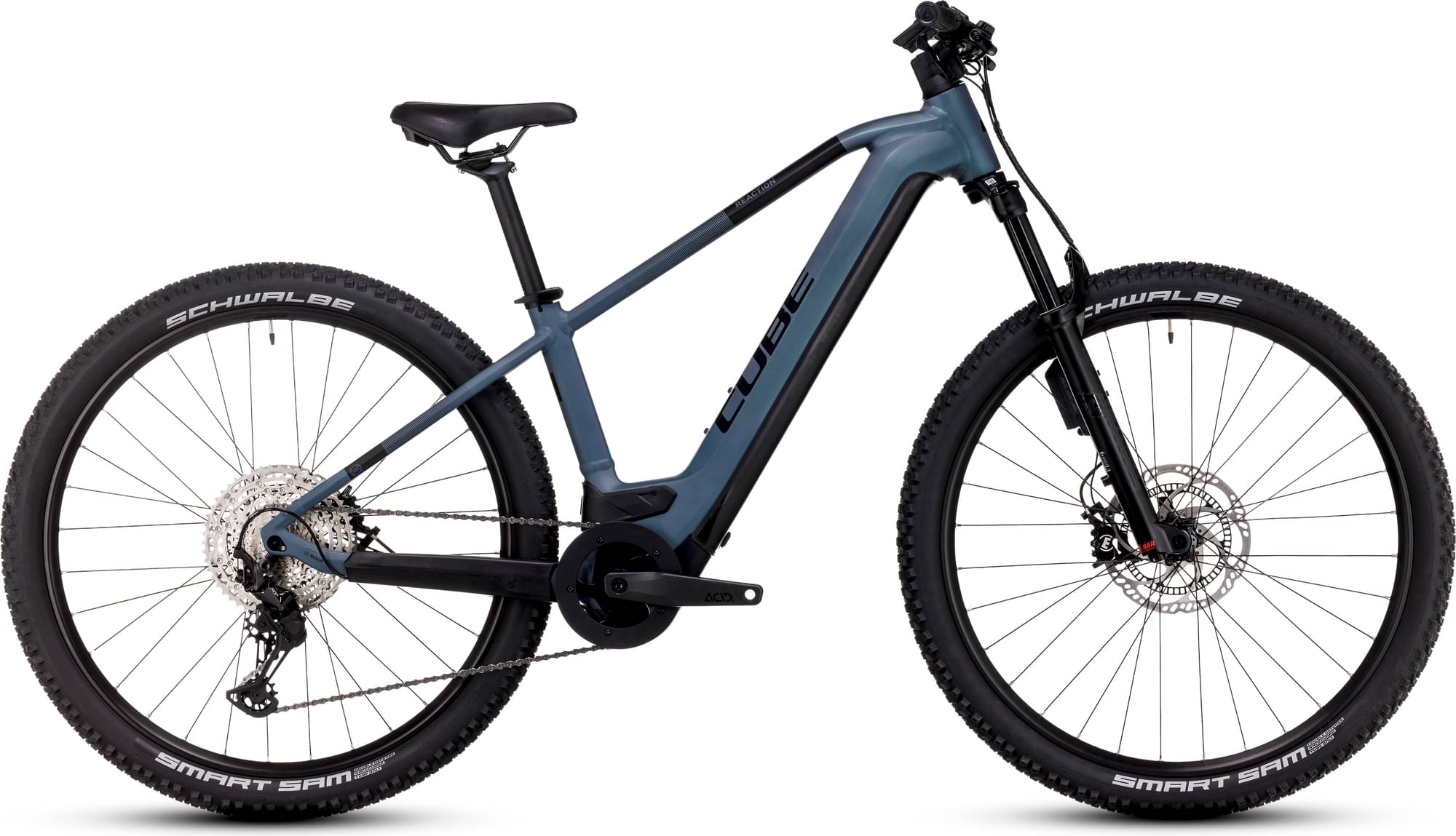

CUBE REACTION HYBRID, ABS 750 2023
2023 E-bike
Estimate price |
5,275$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (EE: 100mm)
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 175mm, 38T
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen
Brakes
Brakes
Magura MT C ABS, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
ACID React Pro
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.48 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 692 mm | 743 mm | 743 mm | 755 mm | 783 mm |
| Rake | 45 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 102 mm | 91 mm | 91 mm | 89 mm | 89 mm |
| Stack | 611 mm | 643 mm | 648 mm | 659 mm | 675 mm |
| Reach | 397 mm | 441 mm | 439 mm | 453 mm | 475 mm |
| Top Tube Length | 562 mm | 625 mm | 625 mm | 642 mm | 669 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 67 ° | 67.5 ° | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 122 mm | 122 mm | 132 mm | 149 mm |
| Chainstay Length | 444 mm | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1132 mm | 1193 mm | 1193 mm | 1205 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview
REACTION HYBRID, ABS 750 is a Cube E Reaction model. CUBE released 139 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the CUBE REACTION HYBRID PERFORMANCE, 500 2023 has a starting price of 2706$. CUBE REACTION HYBRID, ABS 750 2023 on the other hand is the most expensive at 4883$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 4883$. In conclusion, this e-bike price is 45.11% more expensive than the price of the average Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 25.9 kg (57.1 lbs), CUBE e-bike is a bit heavier than average. In conclusion, the average Trail e-bike weighs 9.28% less than REACTION HYBRID, ABS 750.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components

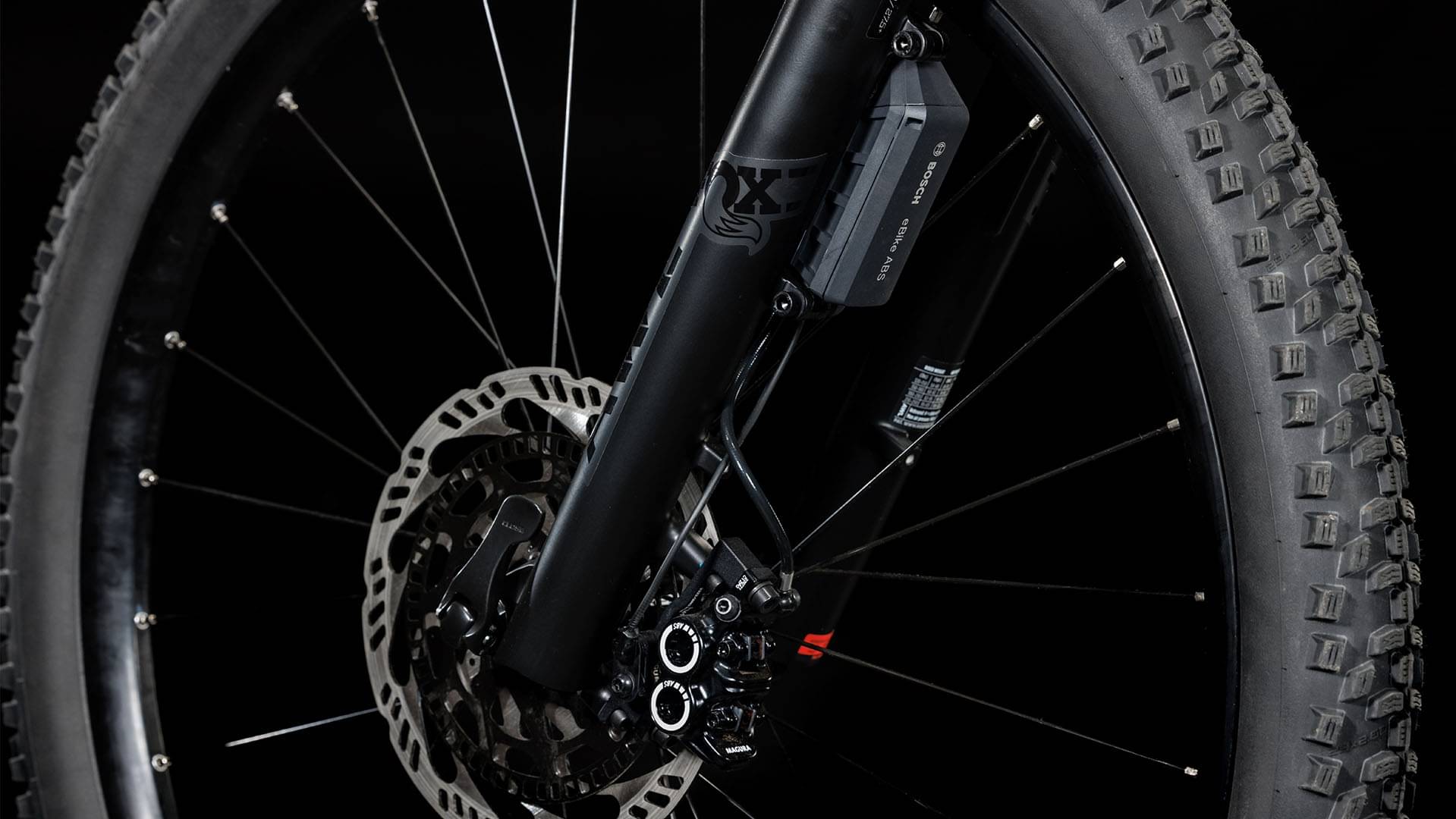

Fork
The REACTION HYBRID, ABS 750 comes factory-installed with the Fox AWL fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, CUBE REACTION HYBRID, ABS 750 2023, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE REACTION HYBRID, ABS 750 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
