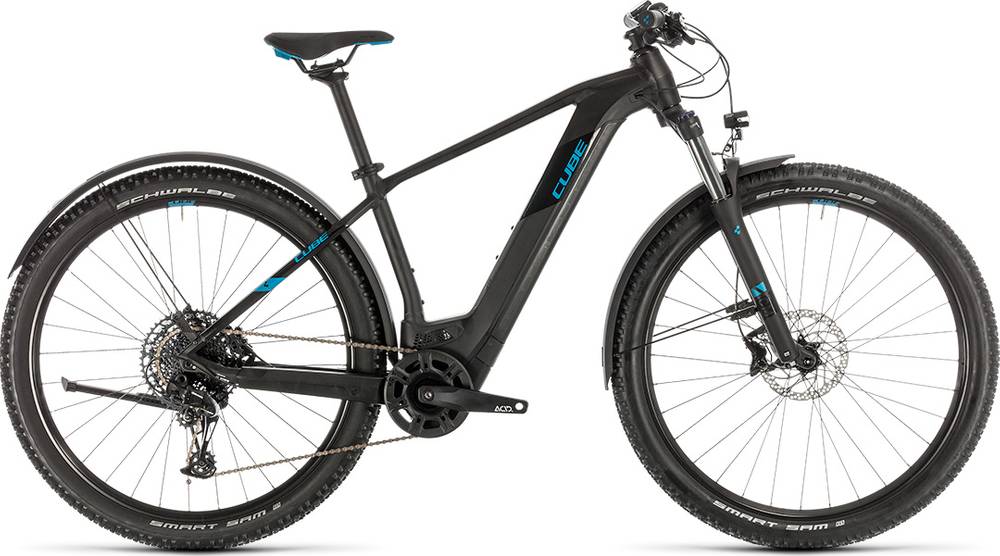

CUBE REACTION HYBRID EX 500 ALLROAD 29 2020
2020 E-bike
Estimate price |
3,018$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
SR Suntour XCM34 Coil, 120mm, Lockout
Drivetrain
Rear Derailleur
SRAM SX Eagle™, 11-50T, 1x12
Shift Levers
SRAM SX Eagle™ Trigger, Single Click
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
ACID E-Crank, 38T
Chain
SRAM SX Eagle™
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-MT420/MT400
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerTube 500
Remote
Purion
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.58 mm | 1.52 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 694 mm | 694 mm | 714 mm | 734 mm | 756 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm | 52 mm |
| Trail | 101 mm | 96 mm | 96 mm | 96 mm | 95 mm |
| Stack | 620 mm | 627 mm | 631 mm | 641 mm | 655 mm |
| Reach | 395 mm | 397 mm | 416 mm | 433 mm | 448 mm |
| Top Tube Length | 572 mm | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 375 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 67.5 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm | 136 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1138 mm | 1138 mm | 1158 mm | 1179 mm | 1201 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 742 mm | 767 mm | 792 mm | 824 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
REACTION HYBRID EX 500 ALLROAD 29 is part of the Cube E Reaction model. CUBE released 139 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
CUBE REACTION HYBRID ONE 500 2020 is the most affordable e-bike of this model and has a price of 2276$. On the other hand, CUBE REACTION HYBRID SLT 625 29 2020, is the most expensive and costs 3932$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When CUBE released this model in 2020, its price was 2794$. Comparing the average cost of a Trail e-bike to this one, you will see that REACTION HYBRID EX 500 ALLROAD 29 price is 20.44% lower.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE REACTION HYBRID EX 500 ALLROAD 29 it’s weighing 24.6 kg (54.23 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail e-bike weighs 3.8% less than REACTION HYBRID EX 500 ALLROAD 29.
REACTION HYBRID EX 500 ALLROAD 29 components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE REACTION HYBRID EX 500 ALLROAD 29 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTION HYBRID EX 500 ALLROAD 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
