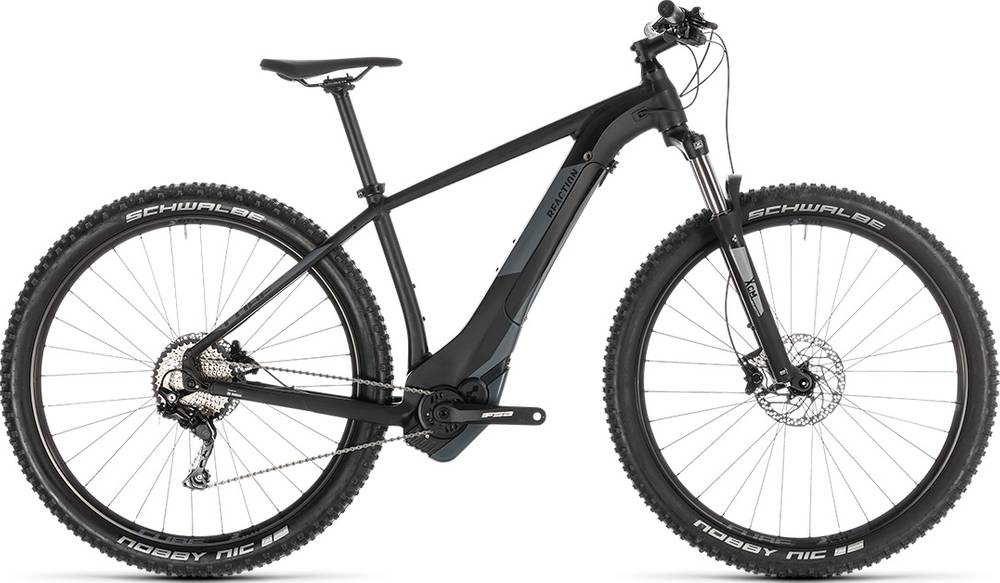

CUBE REACTION HYBRID Exc 500 2019
2019 E-bike
Estimate price |
2,866$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Boost 148, Internal Cable Routing, Full Integrated Battery
Suspension Fork
SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
FSA CK-745, 15T, 175mm
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15QR, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.60
Brakes
Brakes
Shimano BR-MT400, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 700mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit 1.5B ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Active
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm | 1.59 mm | 1.55 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 307 mm | 304 mm | 312 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 642 mm | 644 mm | 659 mm | 679 mm | 690 mm |
| Rake | 36 mm | 37 mm | 39 mm | 39 mm | 39 mm | 40 mm |
| Trail | 98 mm | 90 mm | 98 mm | 95 mm | 95 mm | 94 mm |
| Stack | 597 mm | 619 mm | 628 mm | 638 mm | 647 mm | 661 mm |
| Reach | 386 mm | 401 mm | 395 mm | 412 mm | 429 mm | 434 mm |
| Top Tube Length | 561 mm | 583 mm | 585 mm | 605 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69 ° | 70 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 105 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 468 mm | 468 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1094 mm | 1105 mm | 1117 mm | 1131 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 48 mm | 51 mm | 62 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
About this model
REACTION HYBRID Exc 500 is a Cube E Reaction model. There are 139 e-bikes that carry this model name. Take a sneak peek at all Cube E Reaction e-bikes models from 2019, by clicking here.
Model range prices
CUBE REACTION HYBRID ONE 400 2019 is the most economical model, with a starting price of 2016$. CUBE REACTION HYBRID SLT 500 KIOX 2019 on the other hand costs 3821$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, CUBE REACTION HYBRID Exc 500 price was 2653$. In conclusion, this e-bike price is 8.15% higher than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 23.9 kg (52.69 lbs), CUBE e-bike is slightly heavier than average. To sum up, it’s 2.97% heavier than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The REACTION HYBRID Exc 500 comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The REACTION HYBRID Exc 500 2019 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTION HYBRID Exc 500 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
