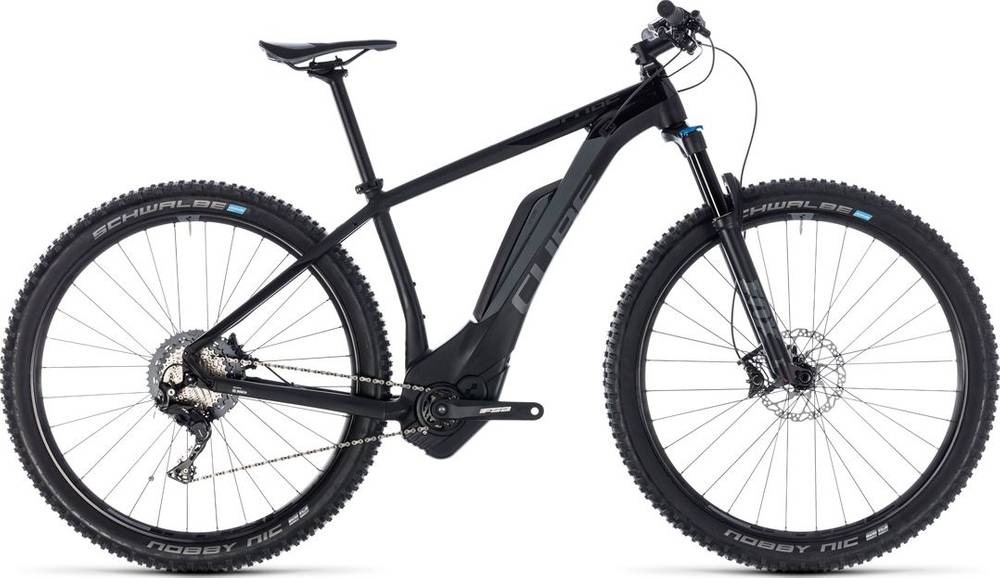

CUBE REACTION HYBRID Exc 500 27.5 2018
2018 E-bike
Weight | 21.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Rhythm Float 34
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X11
Wheels
Front Hub
Shimano XT HB-M8010-B, 15QR, Boost, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic Kevlar 2.60, Addix Speedgrip, Tubeless Easy
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake(180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Race Grip 31, 1-Clamp
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
CUBE Race EXC 145
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 307 mm | 304 mm |
| Front Center | 630 mm | 642 mm |
| Rake | 36 mm | 37 mm |
| Trail | 98 mm | 90 mm |
| Stack | 597 mm | 619 mm |
| Reach | 386 mm | 401 mm |
| Top Tube Length | 561 mm | 583 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm |
| Chainstay Length | 468 mm | 468 mm |
| Wheelbase | 1094 mm | 1105 mm |
| Bottom Bracket Drop | 48 mm | 51 mm |
| Wheels | 27" | 27" |
Model Overview
REACTION HYBRID Exc 500 27.5 belongs to the Cube E Reaction model. 139 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 21.6 kg (47.62 lbs), CUBE e-bike is a bit lighter than average. In short, the average Crosscountry e-bike weight is 7.45% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
REACTION HYBRID Exc 500 27.5 components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the REACTION HYBRID Exc 500 27.5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The REACTION HYBRID Exc 500 27.5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
