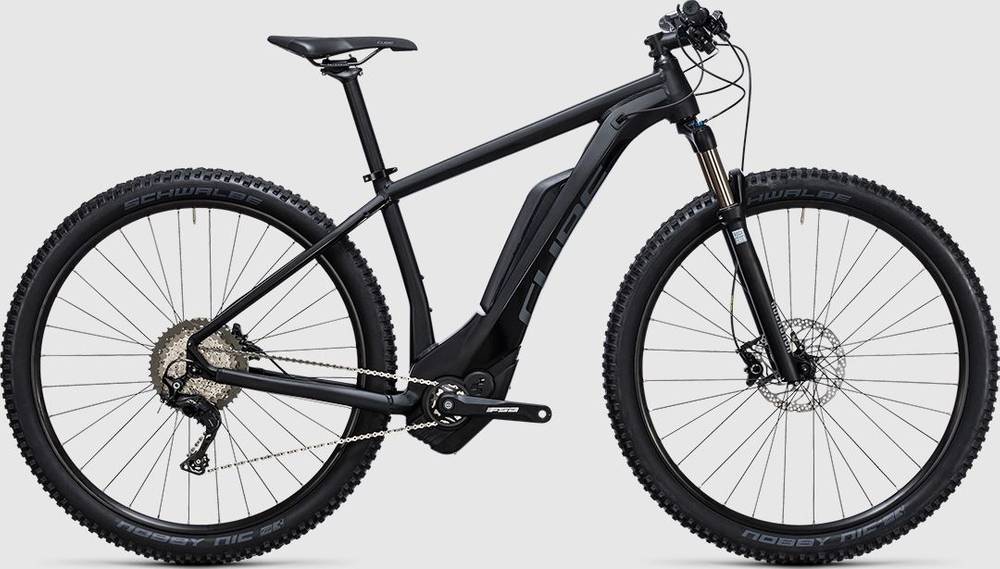

CUBE REACTION HYBRID HPA SL 500 2017
2017 E-bike
Weight | 21.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Recon Silver TK
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
Rock Shox Recon Silver TK Air, 100mm, PopLoc
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS, 11-Speed
Shift Levers
Shimano XT SL-M8000-B-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
FSA CK-745, 16T
Chain
KMC X11
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano XT FH-M8000, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.35
Brakes
Brakes
Shimano Deore BR-M615, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Performance Grip
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30,9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm | 1.59 mm | 1.55 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 307 mm | 304 mm | 312 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 630 mm | 642 mm | 644 mm | 659 mm | 679 mm | 690 mm |
| Rake | 36 mm | 37 mm | 39 mm | 39 mm | 39 mm | 40 mm |
| Trail | 98 mm | 90 mm | 98 mm | 95 mm | 95 mm | 94 mm |
| Stack | 597 mm | 619 mm | 628 mm | 638 mm | 647 mm | 661 mm |
| Reach | 386 mm | 401 mm | 395 mm | 412 mm | 429 mm | 434 mm |
| Top Tube Length | 561 mm | 583 mm | 585 mm | 605 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69 ° | 70 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm | 105 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 468 mm | 468 mm | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1094 mm | 1105 mm | 1117 mm | 1131 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 48 mm | 51 mm | 62 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
About this model
REACTION HYBRID HPA SL 500 is a Cube E Reaction model. 139 e-bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, REACTION HYBRID HPA SL 500 has a weight of 21.5 kg (47.4 lbs). To sum up, it’s 7.95% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
REACTION HYBRID HPA SL 500 components
Fork
The REACTION HYBRID HPA SL 500 comes factory-installed with the RockShox Recon Silver TK fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on REACTION HYBRID HPA SL 500 are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE REACTION HYBRID HPA SL 500 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
