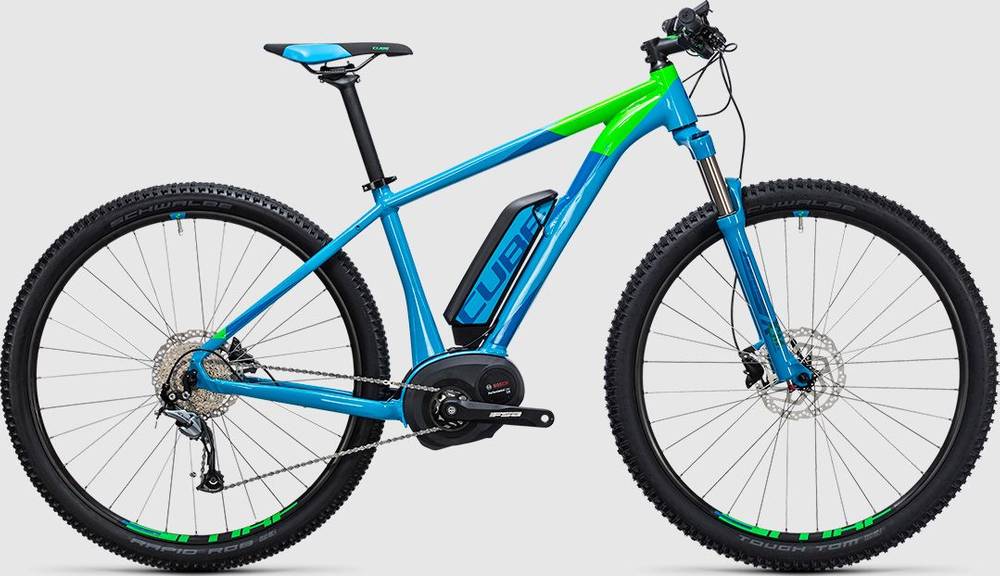

CUBE REACTION HYBRID ONE 400 2017
2017 E-bike
Weight | 21.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Sora, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
SR Suntour XCM32 DS, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3000, 9-Speed
Shift Levers
Shimano SL-M370, Rapidfire-Plus
Cassette
Shimano CS-HG300, 12-36T
Crank
FSA CK-745, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR
Rear Hub
Shimano FH-TX505, QR
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 660mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.75 mm | 1.57 mm | 1.54 mm | 1.61 mm | 1.54 mm | 1.5 mm | 1.51 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 604 mm | 637 mm | 650 | 651 mm | 671 mm | 691 mm | 701 mm |
| Rake | 45 mm | 43 mm | 45 mm | 52 mm | 51 mm | 51 mm | 50 mm |
| Trail | 88 mm | 90 mm | 82 mm | 81 mm | 82 mm | 82 mm | 83 mm |
| Stack | 600 mm | 595 mm | 609 mm | 623 mm | 628 mm | 637 mm | 651 mm |
| Reach | 342 mm | 379 mm | 396 mm | 388 mm | 407 mm | 424 mm | 430 mm |
| Top Tube Length | 526 mm | 555 mm | 577 mm | 579 mm | 599 mm | 619 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 365 mm | 405 mm | 450 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 110 mm | 120 mm | 110 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1068 mm | 1101 mm | 1114 mm | 1130 mm | 1150 mm | 1171 mm | 1181 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" | 29" |
Model Overview
REACTION HYBRID ONE 400 is a Cube E Reaction model. 139 e-bikes variations carry this model name so far. You can easily view all of the Cube E Reaction e-bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 21.1 kg (46.52 lbs), CUBE e-bike is much lighter than average. In short, the average Crosscountry e-bike weight is 10% higher than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
REACTION HYBRID ONE 400 components
Fork
CUBE REACTION HYBRID ONE 400 2017 e-bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the REACTION HYBRID ONE 400 e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
