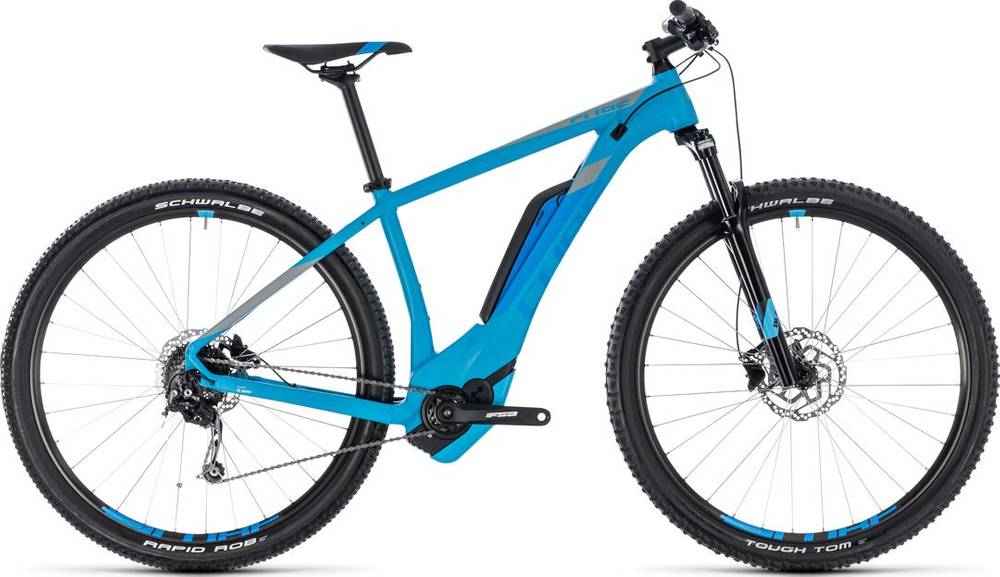

CUBE REACTION HYBRID ONE 400 29 2018
2018 E-bike
Weight | 22.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RST
-
Groupset Deore, Sora -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 400 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RST Blaze Coil, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M3000
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 400
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" | 23" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.55 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 312 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 644 mm | 659 mm | 679 mm | 690 mm |
| Rake | 39 mm | 39 mm | 39 mm | 40 mm |
| Trail | 98 mm | 95 mm | 95 mm | 94 mm |
| Stack | 628 mm | 638 mm | 647 mm | 661 mm |
| Reach | 395 mm | 412 mm | 429 mm | 434 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1117 mm | 1131 mm | 1151 mm | 1162 mm |
| Bottom Bracket Drop | 62 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
REACTION HYBRID ONE 400 29 completes the Cube E Reaction model. There are 139 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry e-bikes
The average weight for Crosscountry e-bikes is 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE REACTION HYBRID ONE 400 29 it’s weighing 22.5 kg (49.6 lbs). At this weight, is slightly lighter than average. To sum up, it’s 3.16% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The RST is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE REACTION HYBRID ONE 400 29 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The REACTION HYBRID ONE 400 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
