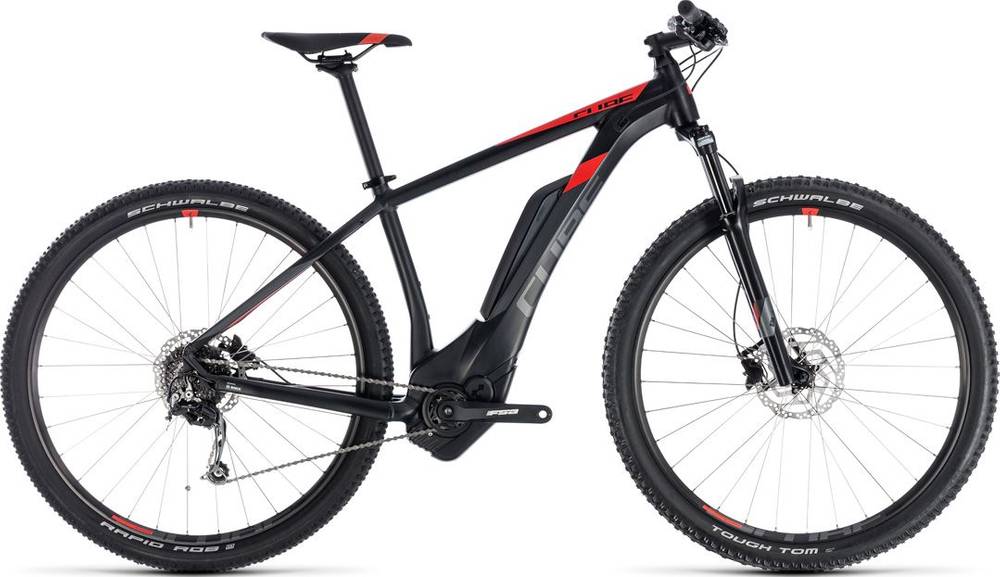

CUBE REACTION HYBRID ONE 500 27.5 2018
2018 E-bike
Weight | 22.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RST
-
Groupset Deore, Sora -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing
Suspension Fork
RST Blaze, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M592-SGS, 9-Speed
Shift Levers
Shimano SL-M3000
Cassette
Shimano CS-HG200, 11-34T
Crank
FSA CK-745, 170mm, 15T
Chain
KMC X9
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Tough Tom, Active, 2.25
Brakes
Brakes
Shimano BR-M315, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Performance Grip
Headset
FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" |
|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 307 mm | 304 mm |
| Front Center | 630 mm | 642 mm |
| Rake | 36 mm | 37 mm |
| Trail | 98 mm | 90 mm |
| Stack | 597 mm | 619 mm |
| Reach | 386 mm | 401 mm |
| Top Tube Length | 561 mm | 583 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 105 mm | 120 mm |
| Chainstay Length | 468 mm | 468 mm |
| Wheelbase | 1094 mm | 1105 mm |
| Bottom Bracket Drop | 48 mm | 51 mm |
| Wheels | 27" | 27" |
About this model
REACTION HYBRID ONE 500 27.5 belongs to the Cube E Reaction model. CUBE launched 139 e-bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, REACTION HYBRID ONE 500 27.5 has a weight of 22.5 kg (49.6 lbs). In other words, this model is 3.16% lighter than the average Crosscountry e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
REACTION HYBRID ONE 500 27.5 components
Fork
The RST is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the REACTION HYBRID ONE 500 27.5 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTION HYBRID ONE 500 27.5 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
