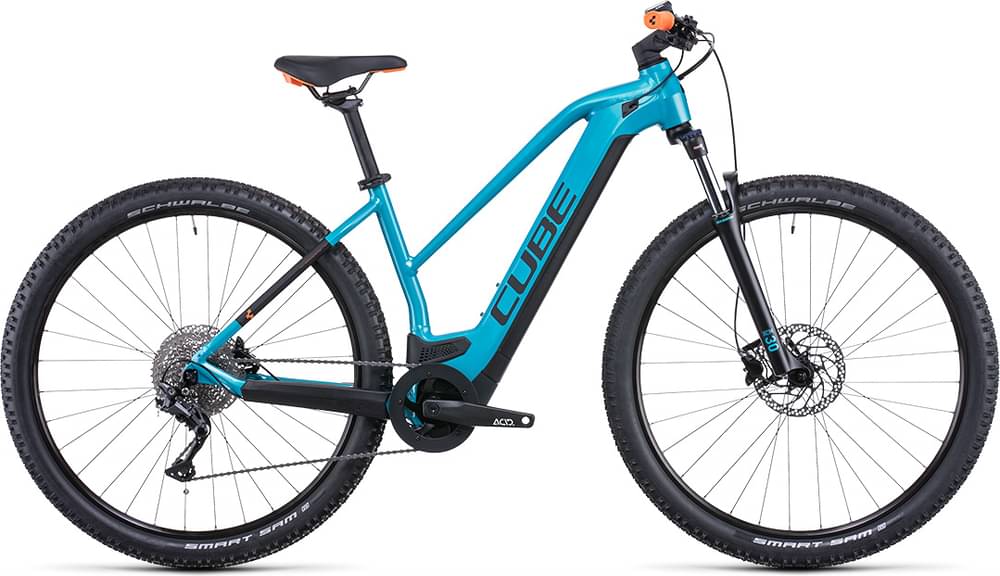

CUBE REACTION HYBRID ONE 500 Trapeze 2022
2022 E-bike
Estimate price |
2,809$
Weight | 23.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour XCM HLO Coil, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100, Rapidfire-Plus
Cassette
Shimano Deore CS-M4100, 11-42T
Crank
ACID E-Crank, 175mm, 38T
Chain
KMC X10
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
Rodi Blackrock 23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.35
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
27.5: ACROS AZX-1033, 1 1/8" straight, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1031, 1 1/8" straight, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.55 mm | 1.51 mm |
| Bottom Bracket Height | 307 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 689 mm | 698 mm |
| Rake | 44 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 89 mm |
| Stack | 606.3 mm | 632 mm | 642 mm |
| Reach | 413.9 mm | 407 mm | 424 mm |
| Top Tube Length | 581 mm | 584 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 120 mm | 115 mm | 120 mm |
| Chainstay Length | 445 mm | 464 mm | 464 mm |
| Wheelbase | 1123 mm | 1145 mm | 1154 mm |
| Bottom Bracket Drop | 48 mm | 65 mm | 65 mm |
| Standover Height | 680 mm | 704 mm | 713 mm |
| Wheels | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
REACTION HYBRID ONE 500 Trapeze belongs to the Cube E Reaction model. There are 139 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE REACTION HYBRID PERFORMANCE 500 2022 is the cheapest e-bike model and costs 2494$. CUBE REACTION HYBRID, LIMITED EDITION 750 29 2022 is the most expensive one and costs 8599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2600$. In conclusion, this e-bike price is 5.99% higher than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
On a deeper look, we notice that the average weight of a Crosscountry e-bike is 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
REACTION HYBRID ONE 500 Trapeze weighs 23.2 kg (51.15 lbs) and is slightly lighter than the average. In short, the average Crosscountry e-bike weight is 0.04% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
REACTION HYBRID ONE 500 Trapeze components
Fork
The REACTION HYBRID ONE 500 Trapeze comes factory-installed with the SunTour XCM HLO fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The REACTION HYBRID ONE 500 Trapeze 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE REACTION HYBRID ONE 500 Trapeze has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
REACTION HYBRID ONE 500 Trapeze comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
