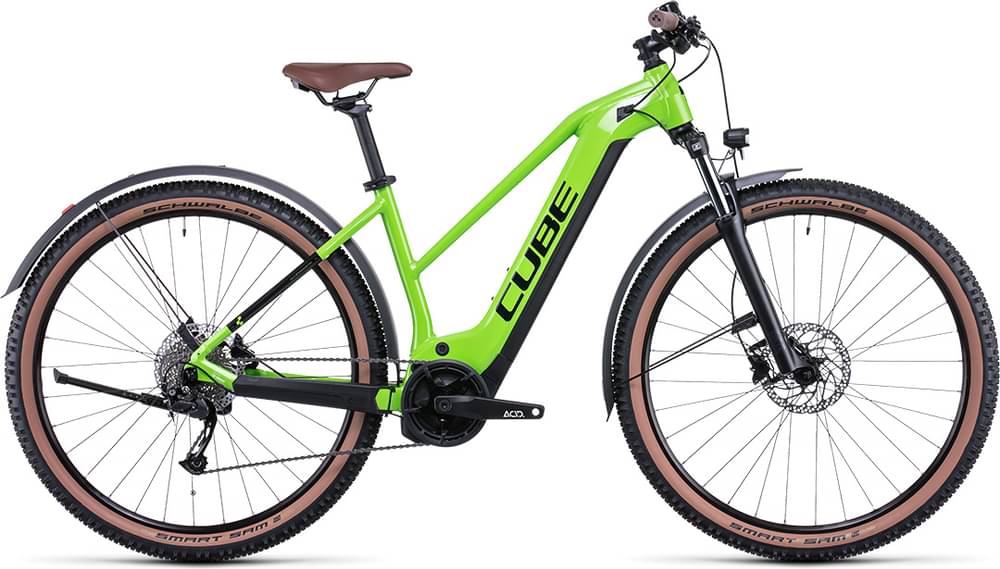

CUBE REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze 2022
2022 E-bike
Estimate price |
2,809$
Weight | 24.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour
-
Groupset Sora -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 175mm, 38T
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
Rodi Blackrock 23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.35
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.52 mm |
| Bottom Bracket Height | 307 mm | 309 mm | 309 mm |
| Front Center | 660 mm | 686 mm | 695 mm |
| Rake | 42 mm | 51 mm | 51 mm |
| Trail | 98 mm | 96 mm | 89 mm |
| Stack | 608 mm | 634 mm | 644 mm |
| Reach | 395 mm | 407 mm | 424 mm |
| Top Tube Length | 566 mm | 586 mm | 606 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 120 mm | 115 mm | 120 mm |
| Chainstay Length | 478 mm | 494 mm | 494 mm |
| Wheelbase | 1134 mm | 1173 mm | 1182 mm |
| Bottom Bracket Drop | 48 mm | 65 mm | 65 mm |
| Standover Height | 688 mm | 705 mm | 713 mm |
| Wheels | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze is part of the Cube E Reaction model. CUBE launched 139 e-bikes of this model so far. You can easily view all of the Cube E Reaction e-bikes models from 2022, here.
Model range prices
The most economical model, the CUBE REACTION HYBRID PERFORMANCE 500 2022 has a starting price of 2494$. CUBE REACTION HYBRID, LIMITED EDITION 750 29 2022 on the other hand is the most expensive at 8599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 2600$. Doing a quick comparison, we notice that REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze price is 5.99% higher than the average cost of a Crosscountry e-bike.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze weighs 24.2 kg (53.35 lbs) and is slightly heavier than the average. To sum up, it’s 4.27% heavier than the average weight of Crosscountry e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze components
Fork
The SunTour is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
REACTION HYBRID PERFORMANCE 500 ALLROAD Trapeze comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
