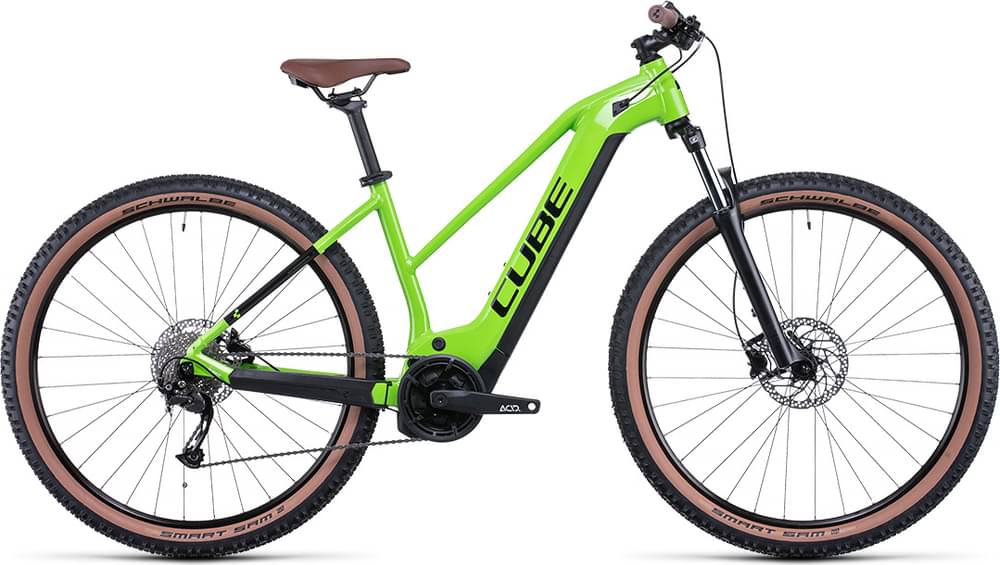

CUBE REACTION HYBRID PERFORMANCE 500 Trapeze 2021
2021 E-bike
Estimate price |
2,694$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour
-
Groupset Sora -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
SR Suntour NVX30 Coil, 100mm
Drivetrain
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shift Levers
Shimano SL-M3100-R, Rapidfire-Plus
Cassette
Shimano CS-HG201, 11-36T
Crank
ACID E-Crank, 175mm, 38T
Chain
KMC X9
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
Rodi Blackrock 23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.35
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.52 mm |
| Bottom Bracket Height | 307 mm | 309 mm | 309 mm |
| Front Center | 660 mm | 686 mm | 695 mm |
| Rake | 42 mm | 51 mm | 51 mm |
| Trail | 98 mm | 96 mm | 89 mm |
| Stack | 606 mm | 632 mm | 642 mm |
| Reach | 393 mm | 405 mm | 422 mm |
| Top Tube Length | 564 mm | 584 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 120 mm | 115 mm | 120 mm |
| Chainstay Length | 476 mm | 492 mm | 492 mm |
| Wheelbase | 1132 mm | 1171 mm | 1180 mm |
| Bottom Bracket Drop | 48 mm | 65 mm | 65 mm |
| Standover Height | 686 mm | 703 mm | 711 mm |
| Wheels | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
REACTION HYBRID PERFORMANCE 500 Trapeze completes the Cube E Reaction model. CUBE released 139 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021 has a starting price of 2176$. CUBE REACTION HYBRID SLT 625 29 2021 on the other hand is the most expensive at 4299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2494$. Comparing this to the average Crosscountry e-bike price, we see that the price is 1.67% more expensive.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 23.1 kg (50.93 lbs), the REACTION HYBRID PERFORMANCE 500 Trapeze model is slightly lighter than average. To sum up, it’s 0.48% lighter than the average weight of Crosscountry e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
REACTION HYBRID PERFORMANCE 500 Trapeze components
Fork
The REACTION HYBRID PERFORMANCE 500 Trapeze comes factory-installed with the SunTour fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The REACTION HYBRID PERFORMANCE 500 Trapeze 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The REACTION HYBRID PERFORMANCE 500 Trapeze has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
