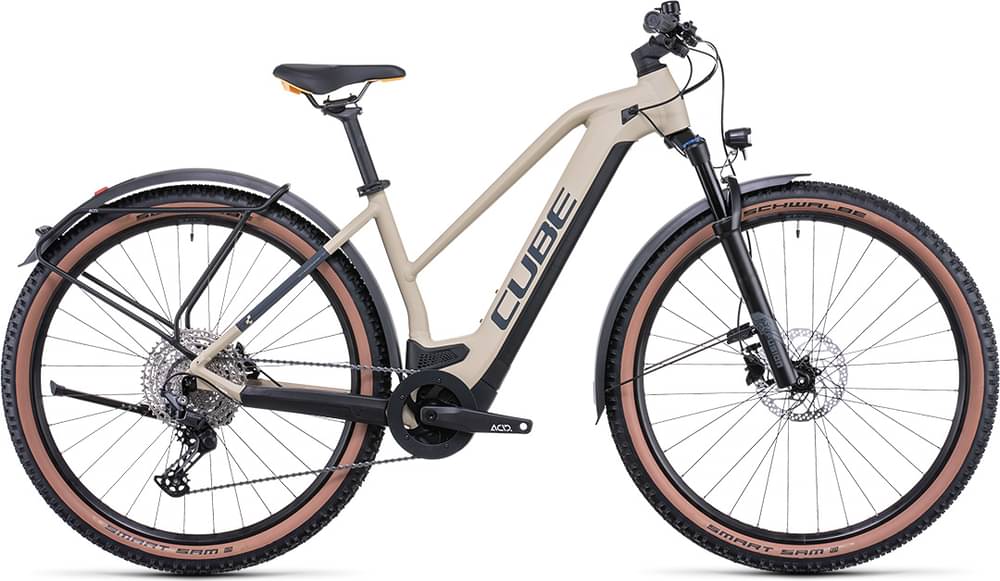

CUBE REACTION HYBRID PRO 500 ALLROAD Trapeze 2021
2021 E-bike
Estimate price |
3,153$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork X Fusion
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire-Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 175mm, 38T
Chain
KMC X11
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.35
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
ACID React Pro
Headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 500
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.55 mm | 1.51 mm |
| Bottom Bracket Height | 307 mm | 309 mm | 309 mm |
| Front Center | 683 mm | 689 mm | 698 mm |
| Rake | 44 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 89 mm |
| Stack | 606.3 mm | 632 mm | 642 mm |
| Reach | 413.9 mm | 407 mm | 424 mm |
| Top Tube Length | 581 mm | 584 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° |
| Head Tube Length | 120 mm | 115 mm | 120 mm |
| Chainstay Length | 445 mm | 464 mm | 464 mm |
| Wheelbase | 1123 mm | 1145 mm | 1154 mm |
| Bottom Bracket Drop | 48 mm | 65 mm | 65 mm |
| Standover Height | 680 mm | 704 mm | 713 mm |
| Wheels | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
REACTION HYBRID PRO 500 ALLROAD Trapeze completes the Cube E Reaction model. CUBE released 139 e-bikes variations of this model so far. Take a sneak peek at all Cube E Reaction e-bikes models from 2021, by clicking here.
Model range prices
CUBE REACTION HYBRID PERFORMANCE 400 Trapeze 2021 is the cheapest e-bike model and costs 2176$. CUBE REACTION HYBRID SLT 625 29 2021 is the most expensive one and costs 4299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 2919$. In conclusion, this e-bike price is 19% higher than the price of the average Crosscountry e-bike.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 24.6 kg (54.23 lbs), the REACTION HYBRID PRO 500 ALLROAD Trapeze model is a bit heavier than average. To sum up, it’s 5.99% heavier than the average weight of Crosscountry e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
CUBE REACTION HYBRID PRO 500 ALLROAD Trapeze 2021 e-bike is equipped with the X Fusion fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The REACTION HYBRID PRO 500 ALLROAD Trapeze 2021 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE REACTION HYBRID PRO 500 ALLROAD Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
