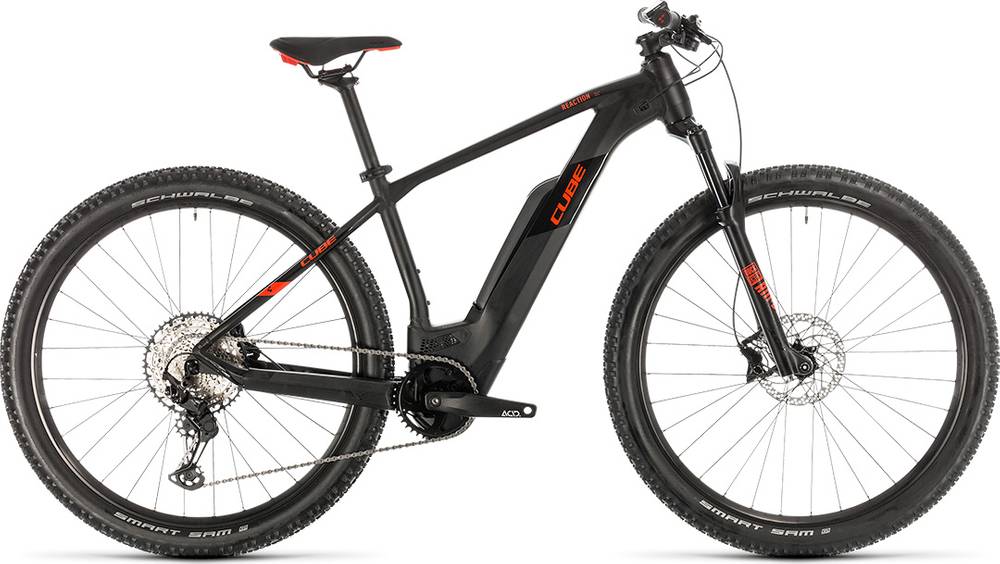

CUBE REACTION HYBRID RACE 500 2020
2020 E-bike
Estimate price |
3,129$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery PowerPack 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA, High Performance Aluminium
Suspension Fork
RockShox Judy Silver Air, eMTB Approved, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT, 10-51T, 1x12
Shift Levers
Shimano SLX SL-M7100
Cassette
Shimano SLX CS-M7100, 10-51T
Crank
ACID E-Crank, 38T
Chain
Shimano SLX CN-M7100
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT500, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.60
Brakes
Brakes
Shimano BR-MT420
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 720mm
Grips
CUBE Race Grip 31mm, 1-Clamp
Headset
FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX GEN4 (75Nm)
Battery
PowerPack 500
Remote
Purion
Charger
2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.52 mm | 1.55 mm | 1.51 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 666 mm | 677 mm | 697 mm | 718 mm | 738 mm |
| Rake | 44 mm | 44 mm | 52 mm | 50 mm | 50 mm | 51 mm |
| Trail | 96 mm | 96 mm | 88 mm | 90 mm | 90 mm | 89 mm |
| Stack | 597 mm | 606 mm | 634 mm | 644 mm | 654 mm | 668 mm |
| Reach | 385 mm | 399 mm | 408 mm | 426 mm | 443 mm | 458 mm |
| Top Tube Length | 551 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 355 mm | 370 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 68 ° | 68 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 110 mm | 120 mm | 131 mm | 146 mm |
| Chainstay Length | 447 mm | 447 mm | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1091 mm | 1109 mm | 1135 mm | 1155 mm | 1176 mm | 1197 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 723 mm | 734 mm | 771 mm | 804 mm | 838 mm | 876 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
Model Overview
REACTION HYBRID RACE 500 is part of the Cube E Reaction model. CUBE released 139 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
CUBE REACTION HYBRID ONE 500 2020 is the cheapest e-bike model and costs 2276$. CUBE REACTION HYBRID SLT 625 29 2020 is the most expensive one and costs 3932$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
If you want to purchase a solid Crosscountry e-bike, it is important to know that the average cost is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 2897$. Doing a quick comparison, we notice that REACTION HYBRID RACE 500 price is 18.1% more expensive than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 21.9 kg (48.28 lbs), the REACTION HYBRID RACE 500 model is a bit lighter than average. To sum up, it’s 5.98% lighter than the average weight of Crosscountry e-bikes.
REACTION HYBRID RACE 500 components
Fork
This e-bike has the RockShox Judy fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, CUBE REACTION HYBRID RACE 500 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The REACTION HYBRID RACE 500 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
