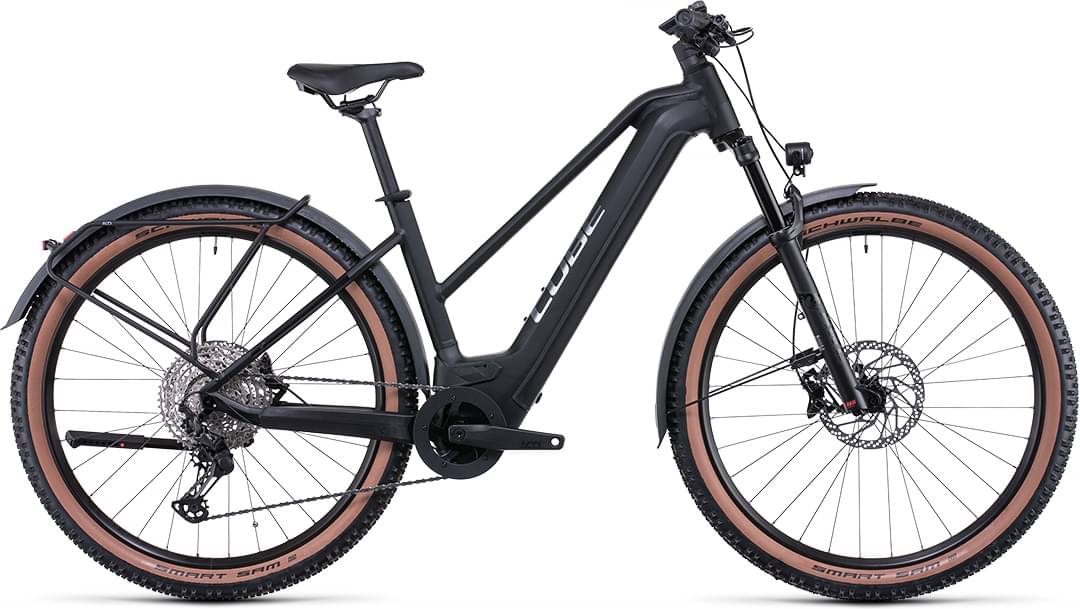

CUBE REACTION HYBRID SL 750 ALLROAD 29 Trapeze 2022
2022 E-bike
Estimate price |
4,587$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 175mm, 38T
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, Kevlar, 2.6
Brakes
Brakes
Shimano BR-MT420, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
ACID React Pro
Headset
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch Kiox 300
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 743 mm | 743 mm |
| Rake | 52 mm | 52 mm |
| Trail | 99 mm | 99 mm |
| Stack | 651 mm | 656 mm |
| Reach | 449 mm | 447 mm |
| Top Tube Length | 633 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 405 mm | 450 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° |
| Head Tube Length | 122 mm | 122 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1201 mm | 1201 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 694 mm | 694 mm |
| Wheels | 29" | 29" |
About this model
REACTION HYBRID SL 750 ALLROAD 29 Trapeze completes the Cube E Reaction model. CUBE launched 139 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
CUBE REACTION HYBRID PERFORMANCE 500 2022 is the most affordable e-bike of this model and has a price of 2494$. On the other hand, CUBE REACTION HYBRID, LIMITED EDITION 750 29 2022, is the most expensive and costs 8599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. Comparing the average cost of a Trail e-bike to this one, you will see that REACTION HYBRID SL 750 ALLROAD 29 Trapeze price is 26.18% more expensive.
Trail e-bikes average weight
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.6 kg (54.23 lbs), CUBE e-bike is slightly heavier than average. In conclusion, the average Trail e-bike weighs 3.8% less than REACTION HYBRID SL 750 ALLROAD 29 Trapeze.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
REACTION HYBRID SL 750 ALLROAD 29 Trapeze components
Fork
The fork installed on this bike is the Fox AWL model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the REACTION HYBRID SL 750 ALLROAD 29 Trapeze model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE REACTION HYBRID SL 750 ALLROAD 29 Trapeze is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
