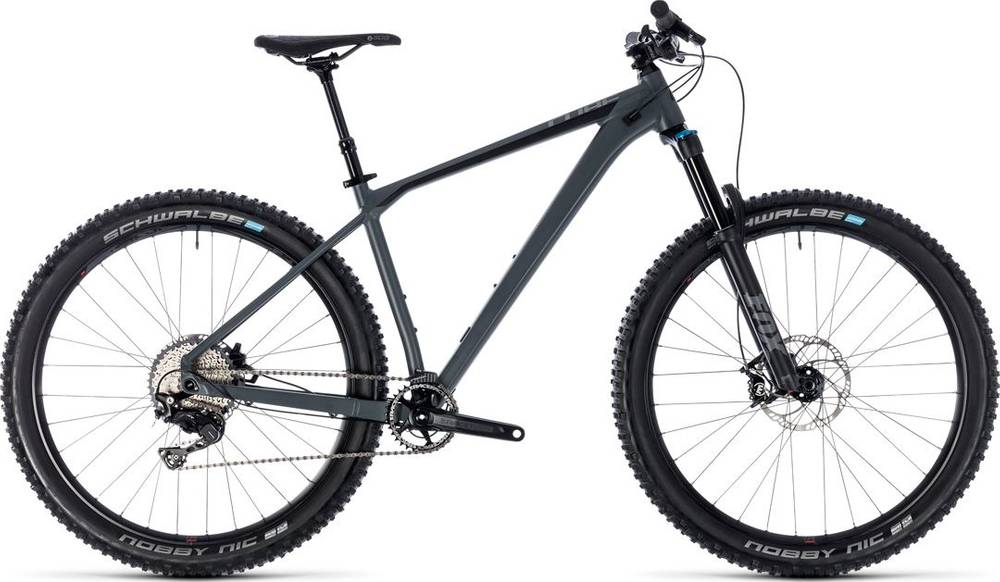

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8 27.5" Tires
Suspension Fork
Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
Shift Levers
Shimano SLX SL-M7000
Cassette
Shimano SLX CS-M7000, 11-46T
Crank
Race Face Aeffect SL 32T, 175mm
Chain
KMC X11 L
Pedals
CUBE Aluminium MTB
Wheels
Front Hub
CUBE Alloy Light
Rear Hub
CUBE Alloy Light
Rims
Rodi Blackjack Typ 35, 32H, Disc
Tires
Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.6
Brakes
Brakes
Magura MT Trail Custom, Hydr. Disc Brake (180/180)
Cockpit
Stem
Race Face Aeffect R 35
Handlebar
Race Face Aeffect 35, 760mm
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Fly Mtn 2
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 27.2mm, 400x105mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 294 mm | 294 mm | 294 mm | 294 mm |
| Front Center | 690 mm | 712 mm | 737 mm | 763 mm |
| Rake | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 95 mm | 95 mm | 94 mm | 95 mm |
| Stack | 624 mm | 628 mm | 639 mm | 654 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm |
| Top Tube Length | 581 mm | 602 mm | 626 mm | 651 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 450 mm | 490 mm | 540 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 105 mm | 117 mm | 133 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1115 mm | 1137 mm | 1162 mm | 1188 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model
REACTION TM belongs to the Cube Reaction model. CUBE released 76 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.1 kg (28.88 lbs), the REACTION TM model is slightly heavier than average. In conclusion, the average Trail bike weighs 0.92% less than REACTION TM.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
REACTION TM components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the REACTION TM bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
CUBE REACTION TM includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
