Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
19"
165cm - 177cm
21"
175cm - 188cm
23"
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, AXH
Suspension Fork
Fox 32 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 120mm
Rear Shock
Fox Float DPS EVOL, 184x44mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed
Front Derailleur
Shimano SLX FD-M7020-D, Direct Mount, Side Swing
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
Shimano XT FC-M8000, 27.5": 36x26T // 29": 34x24T, 175mm (180mm for 23" frame size)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Fulcrum Red 55, 15mm x 110mm / 12mm x 142mm
Rear Hub
Fulcrum Red 55, 15mm x 110mm / 12mm x 142mm
Rims
Fulcrum Red 55, 28/28 Spokes, 15x110mm / 12x142mm
Spokes
28 / 28 spoke count
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.25
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Brake Levers
Shimano XT BR-M8000
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia X3
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 19" | 21" | 23" |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.41 mm | 1.44 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm |
| Front Center | 719 mm | 738 mm | 750 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm |
| Stack | 617 mm | 626 mm | 645 mm |
| Reach | 429 mm | 444 mm | 449 mm |
| Top Tube Length | 589 mm | 607 mm | 618 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 445 mm | 495 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 120 mm | 130 mm | 150 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1157 mm | 1176 mm | 1188 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

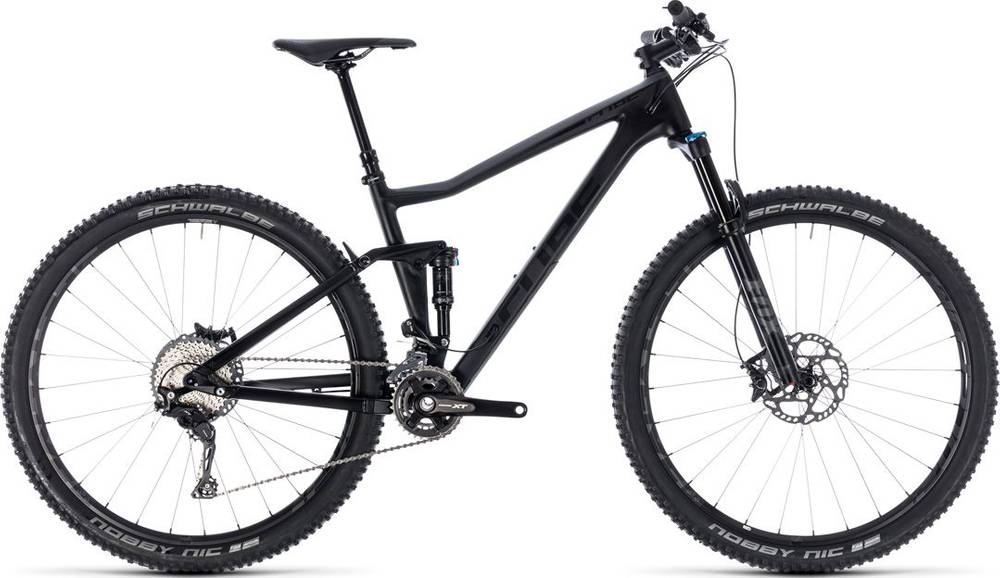

STEREO 120 HPC SL 29 is part of the Cube Stereo 120 model. CUBE released 38 bikes variations of this model so far. Take a sneak peek at all Cube Stereo 120 bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, STEREO 120 HPC SL 29 has a weight of 12.7 kg (28 lbs). In short, the average Trail bike weight is 2.2% higher than this one.
STEREO 120 HPC SL 29 components
Fork
The STEREO 120 HPC SL 29 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float DPS EVOL rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, CUBE STEREO 120 HPC SL 29 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
STEREO 120 HPC SL 29 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
CUBE STEREO 120 HPC SL 29 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
