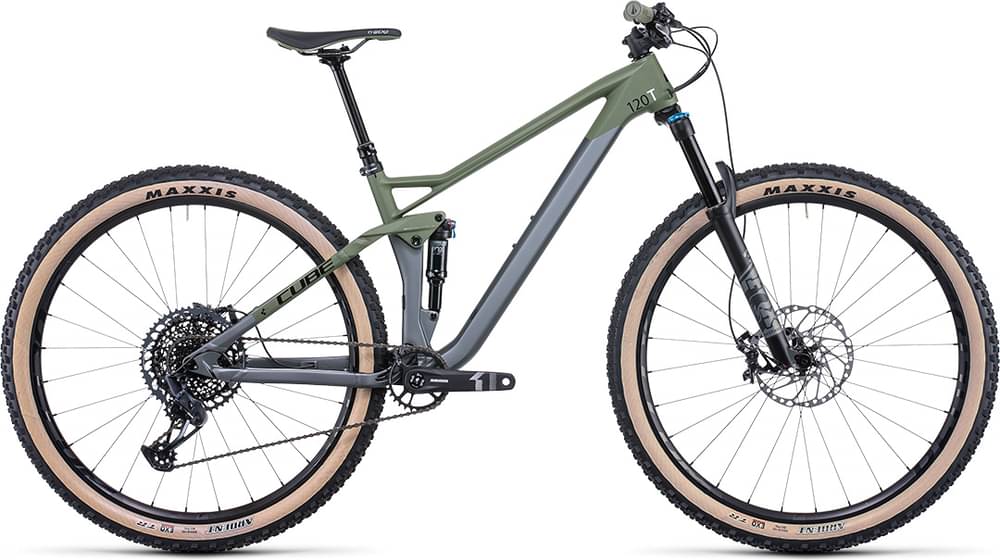

CUBE STEREO 120 HPC TM 29 2022
2022 Mountain
Estimate price |
3,325$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH
Suspension Fork
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm
Rear Shock
Fox Float DPS, 190x45mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM NX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
SRAM X1 1000 Eagle™ DUB 30T, Boost, 170mm
Chain
SRAM SX Eagle™
Wheels
Rims
Fulcrum Red 55 EM, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Brakes
Brakes
Shimano XT BR-M8120/M8100, Hydr. Disc Brake (203/180)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
SDG Thrice
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Bel Air V3
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 150mm (125mm for size S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 716 mm | 737 mm | 761 mm | 788 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 607.4 mm | 610.2 mm | 619.4 mm | 637.8 mm |
| Reach | 424 mm | 444 mm | 464 mm | 484 mm |
| Top Tube Length | 574 mm | 595 mm | 618 mm | 644 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 102 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1152 mm | 1173 mm | 1197 mm | 1225 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 745 mm | 744 mm | 751 mm | 779 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO 120 HPC TM 29 is a Cube Stereo 120 model. CUBE released 38 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
CUBE STEREO 120 ROOKIE 2022 is the most affordable bike of this model and has a price of 1857$. On the other hand, CUBE STEREO 120 HPC SLT 29 2022, is the most expensive and costs 4565$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2022, its price was 3078$. If we compare this with the average Trail bike cost we notice that the price is 11.44% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
STEREO 120 HPC TM 29 weighs 13.4 kg (29.54 lbs) and is slightly heavier than the average. In other words, this model is 3.24% heavier than the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the STEREO 120 HPC TM 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO 120 HPC TM 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
CUBE STEREO 120 HPC TM 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
CUBE STEREO 120 HPC TM 29 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
