Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
158cm - 171cm
18"
168cm - 180cm
20"
178cm - 189cm
22"
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 36 Float Factory FIT, LSC/HSC, Tapered, 15x110mm, 150mm, Kashima Coated
Rear Shock
Fox Float DPX2 Factory EVOL, 185x52.5mm Trunnion Mount, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger
Cassette
SRAM XG-1275, 10-50T
Crank
SRAM X1 Eagle 32T, 175mm
Bottom Bracket
Pressfit
Chain
SRAM GX Eagle
Chain Guide
MRP 1X
Pedals
N/A
Wheels
Front Hub
Newmen Evolution SL A.30, 15mm x 110mm / 12mm x 148mm
Rear Hub
Newmen Evolution SL A.30, 15mm x 110mm / 12mm x 148mm
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Spokes
28 / 28 Spoke Count
Tires
Schwalbe Fat Albert, Addix Soft, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
SRAM Code R, Hydr. Disc Brake (200/180)
Brake Levers
SRAM Code R
Cockpit
Stem
Race Face Aeffect R 35
Handlebar
Race Face Chester 35, 780mm
Grips
SDG Slater
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Fly MTN 2
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 456x150mm (409x125mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 716 mm | 740 mm | 764 mm | 792 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 632 mm |
| Reach | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 572 mm | 595 mm | 618 mm | 644 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 107 mm | 117 mm | 127 mm | 147 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1145 mm | 1169 mm | 1193 mm | 1221 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

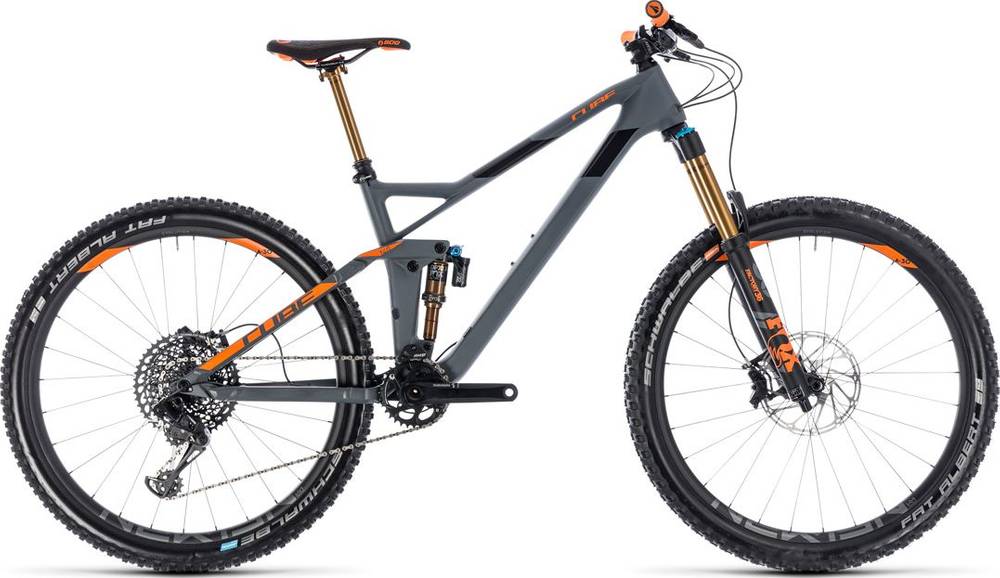

STEREO 140 HPC TM 27.5 completes the Cube Stereo 140 model. CUBE released 37 bikes variations of this model so far. You can easily view all of the Cube Stereo 140 bikes models from 2018, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13.2 kg (29.1 lbs), CUBE bike is slightly heavier than average. In conclusion, the average Trail bike weighs 1.69% less than STEREO 140 HPC TM 27.5.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Float DPX2 Factory EVOL model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, CUBE STEREO 140 HPC TM 27.5 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. CUBE STEREO 140 HPC TM 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
CUBE STEREO 140 HPC TM 27.5 comes with a dropper post. Therefore, climbing or descending will be a breeze.
