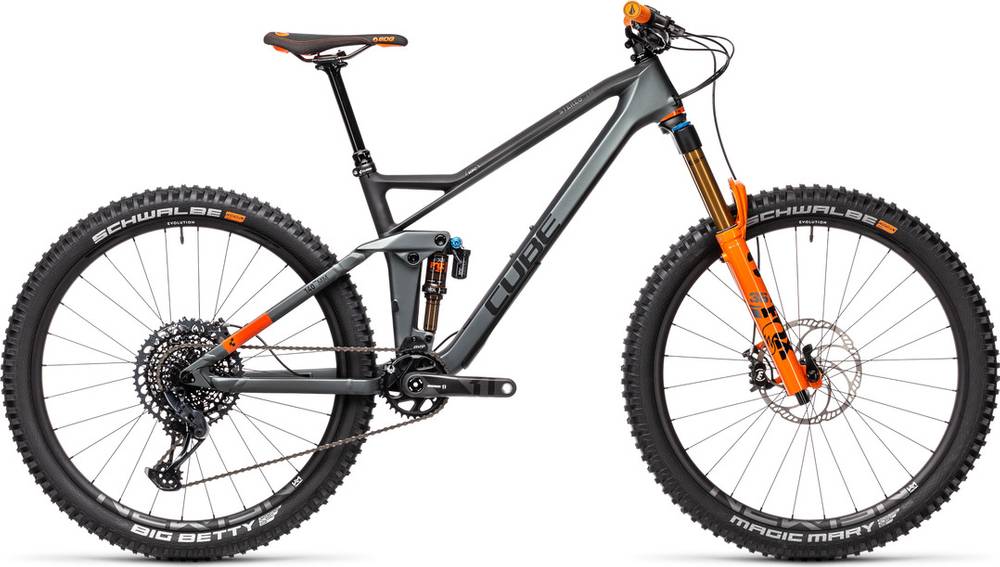

CUBE STEREO 140 HPC TM 27.5 2021
2021 Mountain
Estimate price |
4,071$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, ISCG Mount, Boost 148, AXH
Suspension Fork
Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 150mm, Kashima Coated
Rear Shock
Fox Float DPX2 Factory, 185x52.5mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275, 10-52T
Crank
SRAM X1 Eagle™ Carbon, 32T, 170mm
Chain
SRAM SX Eagle™
Chain Guide
MRP 1X Chain Guide
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/180)
Cockpit
Stem
Race Face Turbine R 35
Handlebar
Race Face Next R 35 Carbon, 800mm
Grips
SDG Thrice
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
SDG Radar
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 150mm (125mm for size S)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 716 mm | 740 mm | 764 mm | 792 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 596 mm | 605 mm | 614 mm | 632 mm |
| Reach | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 572 mm | 595 mm | 618 mm | 644 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 107 mm | 117 mm | 127 mm | 147 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1145 mm | 1169 mm | 1193 mm | 1221 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 737 mm | 738 mm | 760 mm | 769 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
STEREO 140 HPC TM 27.5 is part of the Cube Stereo 140 model. 37 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the CUBE STEREO 140 HPC RACE 27.5 2021 has a starting price of 2706$. CUBE STEREO 140 HPC TM 27.5 2021 on the other hand is the most expensive at 3768$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, CUBE STEREO 140 HPC TM 27.5 price was 3768$. Doing a quick comparison, we notice that STEREO 140 HPC TM 27.5 price is 36.42% higher than the average cost of a Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.7 kg (30.2 lbs), the STEREO 140 HPC TM 27.5 model is a bit heavier than average. In other words, this model is 5.55% heavier than the average Trail bike.
Overview of components
Fork
CUBE STEREO 140 HPC TM 27.5 2021 bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
CUBE STEREO 140 HPC TM 27.5 bike has the Fox Float DPX2 Factory model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the STEREO 140 HPC TM 27.5 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The STEREO 140 HPC TM 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
STEREO 140 HPC TM 27.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the STEREO 140 HPC TM 27.5. Therefore, climbing or descending will be a breeze.
