Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Aion RC-PCS Air, 15mm x 100mm
Rear Shock
SR Suntour DUAir LOR8, 190mm x 50mm
Drivetrain
Rear Derailleur
SRAM NX long cage, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX
Cassette
SRAM PG-1130, 11-42 tooth
Crank
Race Face Aeffect, 170mm length
Bottom Bracket
Race Face
Chain
SRAM 11-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Cube MS1F | Cube M51R
Rear Hub
Cube MS1F | Cube M51R
Rims
Cube EX23, 32 spoke count, tubeless ready
Tires
Schwalbe Nobby Nic, Performance, 27.5" x 2.35"
Brakes
Brakes
Magura MT Trail Custom, 180mm rotors
Brake Levers
Magura MT Trail Custom
Cockpit
Stem
Cube Performance Stem Pro, 31.8mm diameter
Handlebar
Cube Rise Trail Bar Pro, 720mm width
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA Orbit 1.5B ZS-1, semi-integrated, top 1 1/8", bottom 1 1/2"
Seat
Saddle
Selle Royal MTB
Seatpost
Cube Performance Post
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.44 mm | 1.4 mm |
| Front Center | 676 mm | 697 mm | 718 mm |
| Rake | 44 mm | 44 mm | 45 mm |
| Stack | 587 mm | 591.5 mm | 601 mm |
| Reach | 393 mm | 412 mm | 429 mm |
| Top Tube Length | 551 mm | 571 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 350 mm | 360 mm | 400 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1112 mm | 1133 mm | 1154 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

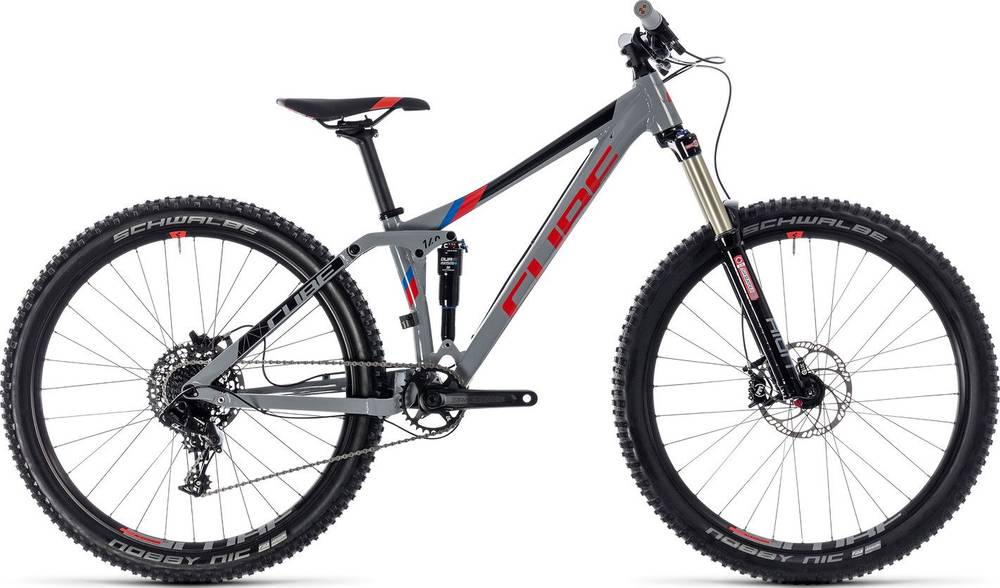

Stereo 140 Youth is a Cube Stereo 140 model. There are 37 bikes that carry this model name. Take a sneak peek at all Cube Stereo 140 bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Mountain bikes
Our math shows that the average cost of a dependable Mountain bike is 616$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Mountain bikes average weight
Mountain bikes weigh an average of 11.4 kg (25.13 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Stereo 140 Youth weighs 13.6 kg (29.98 lbs) and is much heavier than the average. In short, the average Mountain bike weight is 19.3% lower than this one.
Stereo 140 Youth components
Fork
The SunTour AION is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the SR Suntour DUAir LOR8 rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Stereo 140 Youth model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cube Stereo 140 Youth is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cube Stereo 140 Youth bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
