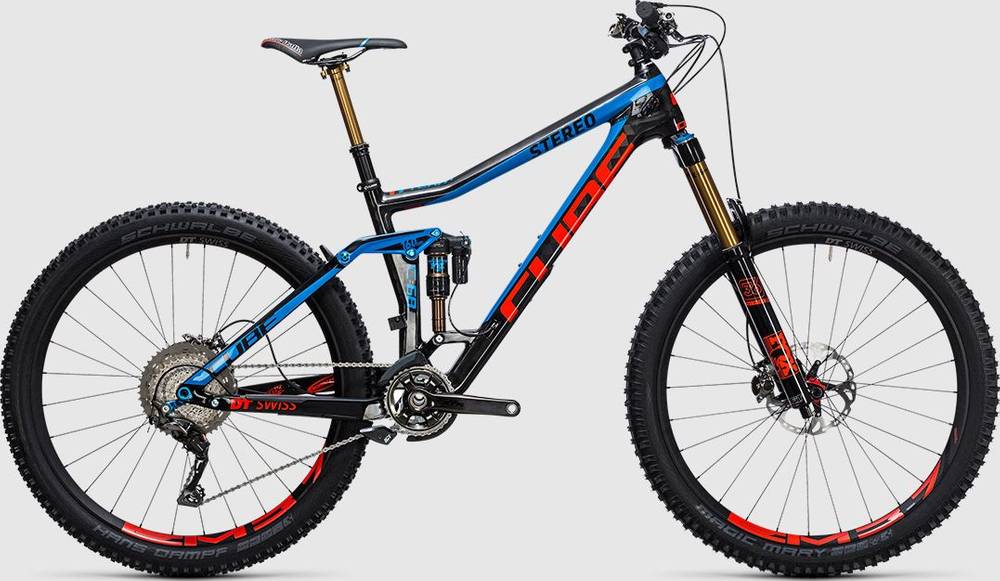

CUBE STEREO 160 C:68 Action Team 27.5 2017
2017 Mountain
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, e*thirteen LG1 Plus -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68 Monocoque Advanced Twin Mold Technology, ATG, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 36 Float Factory FIT, LSC/HSC, 15mm Axle, Tapered, Kashima Coated, 160mm
Rear Shock
Fox Float X Factory Remote, 200x57mm, Open/Medium/Firm Mode w/ Remote Lever, Kashima Coated, EVOL Air Sleeve
Drivetrain
Rear Derailleur
Shimano XTR RD-M9000-DSGS, ShadowPlus, 11-Speed
Front Derailleur
e*thirteen LG1+ Chain Guide, ISCG05
Shift Levers
Shimano XTR SL-M9000-I Direct Attach
Cassette
Shimano XT CS-M8000, 11-46T
Crank
Shimano XTR FC-M9020 Boost, 32T, 175mm
Chain
Shimano CN-HG601-11
Wheels
Rims
DT CSW EM 3.7 Straightpull Wheelset, 28/28 Spokes, 15mm / X12 Boost, 584x30C, Tubeless Ready, DT Swiss Pro Head® Reinforcement System, Squorx® Alloy Nipples
Tires
Schwalbe Magic Mary 2.35, Super Gravity, VertStar Tubeless Easy
Brakes
Brakes
Shimano XTR BR-M9020, Hydr. Disc Brake (180/180)
Cockpit
Stem
Race Face Turbine R 35
Handlebar
Race Face SixC 35 Carbon, 800mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Selle Italia SLR MG
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated, 456x150mm (409x125mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.42 mm | 1.43 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 722 mm | 744 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 110 mm | 110 mm | 110 mm | 109 mm |
| Stack | 601 mm | 613 mm | 622 mm | 637 mm |
| Reach | 408 mm | 425 mm | 439 mm | 445 mm |
| Top Tube Length | 563 mm | 583 mm | 601 mm | 612 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 128 mm | 138 mm | 155 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1154 mm | 1176 mm | 1195 mm | 1208 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
STEREO 160 C:68 Action Team 27.5 is part of the Cube Stereo 160 model. CUBE launched 15 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
STEREO 160 C:68 Action Team 27.5 weighs 13.2 kg (29.1 lbs) and is a bit lighter than the average. In other words, this model is 8.11% lighter than the average Enduro bike.
STEREO 160 C:68 Action Team 27.5 components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float X Factory Remote, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the STEREO 160 C:68 Action Team 27.5 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO 160 C:68 Action Team 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
CUBE STEREO 160 C:68 Action Team 27.5 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
