Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP damper, Tapered, 15QR, 160mm
Rear Shock
Fox Float DPS, 200x57mm, Open/Medium/Firm Mode, EVOL Air Canister
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed, Direct Mount
Front Derailleur
Shimano XT FD-M8020-D, Direct Mount, Side Swing
Shift Levers
Shimano XT SL-M8000-I, Direct Attach
Cassette
Shimano XT CS-M8000, 11-42T
Crank
Shimano XT FC-M8000-B2, Boost, 36x26T, 175mm
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Rims
DT CSW AM 2.7 Straightpull Wheelset, 28/28 Spokes, 15mm/X12 Boost, 25C, Tubeless Ready
Tires
Schwalbe Hans Dampf Kevlar 2.35, TrailStar, Tubeless Easy
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 Riser, 760mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
SDG FLY MTN 2
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 722 mm | 744 mm | 763 mm | 776 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 110 mm | 110 mm | 110 mm | 109 mm |
| Stack | 608 mm | 620 mm | 629 mm | 644 mm |
| Reach | 415 mm | 432 mm | 446 mm | 452 mm |
| Top Tube Length | 570 mm | 590 mm | 608 mm | 619 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 113.3 mm | 126.3 mm | 136.3 mm | 153.3 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1161 mm | 1183 mm | 1202 mm | 1215 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

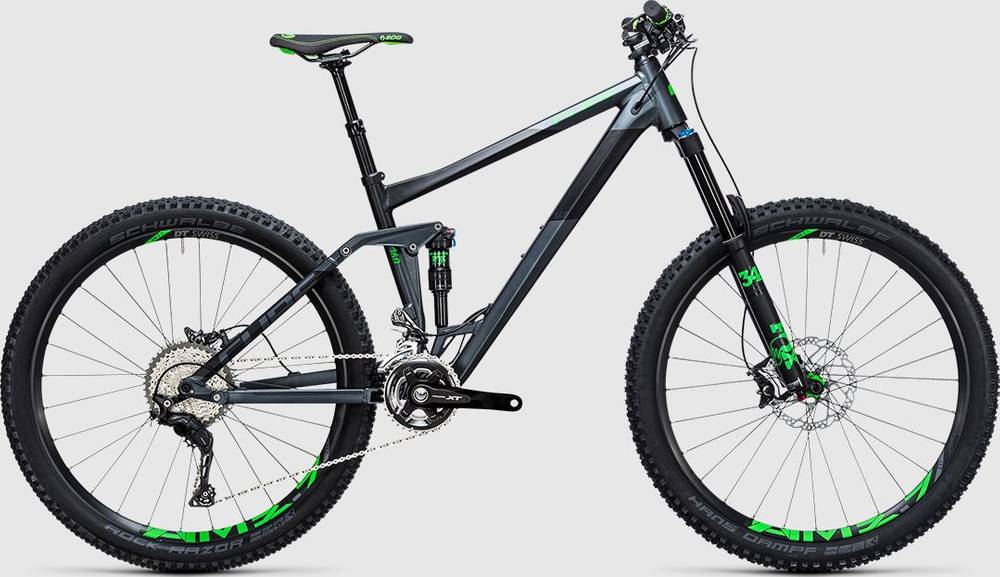

STEREO 160 HPA SL 27.5 is part of the Cube Stereo 160 model. CUBE launched 15 bikes of this model so far. Take a sneak peek at all Cube Stereo 160 bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE STEREO 160 HPA SL 27.5 it’s weighing 13.35 kg (29.43 lbs). At this weight, is a bit lighter than average. In short, the average Enduro bike weight is 6.89% higher than this one.
Overview of components
Fork
The Fox Float 34 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The STEREO 160 HPA SL 27.5 has a rear shock with a travel of 160mm. The model Fox Float DPS is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the STEREO 160 HPA SL 27.5 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STEREO 160 HPA SL 27.5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the STEREO 160 HPA SL 27.5. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
