Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 34
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
158cm - 171cm
18"
168cm - 180cm
20"
178cm - 189cm
22"
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, 15x110mm, 160mm
Rear Shock
Fox Float DPS EVOL, 200x57mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano Deore RD-M6000-DSGS, ShadowPlus, 10-Speed, Direct Mount
Front Derailleur
N/A
Shift Levers
Shimano Deore SL-M6000, Rapidfire-Plus
Cassette
Shimano Deore CS-HG500, 11-42T
Crank
Race Face Aeffect 32T, 175mm
Bottom Bracket
Pressfit
Chain
KMC X10
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Answer Atac EM, 15mm x 110mm / 12mm x 148mm
Rear Hub
Answer Atac EM, 15mm x 110mm / 12mm x 148mm
Rims
Answer Atac EM, 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe Hans Dampf, Addix Performance, Kevlar, 2.35
Brakes
Brakes
Magura MT5, Hydr. Disc Brake (203mm/180mm)
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Aeffect R 35
Handlebar
Race Face Chester 35, 780mm
Grips
CUBE Race SL Grip 29.5, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Royal MTB
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 440x150mm (400x125mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 721 mm | 743 mm | 762 mm | 775 mm |
| Rake | 43 mm | 43 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 110 mm | 110 mm |
| Stack | 608 mm | 620 mm | 629 mm | 644 mm |
| Reach | 415 mm | 432 mm | 446 mm | 452 mm |
| Top Tube Length | 570 mm | 590 mm | 608 mm | 619 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 113 mm | 126 mm | 136 mm | 153 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1161 mm | 1183 mm | 1202 mm | 1215 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

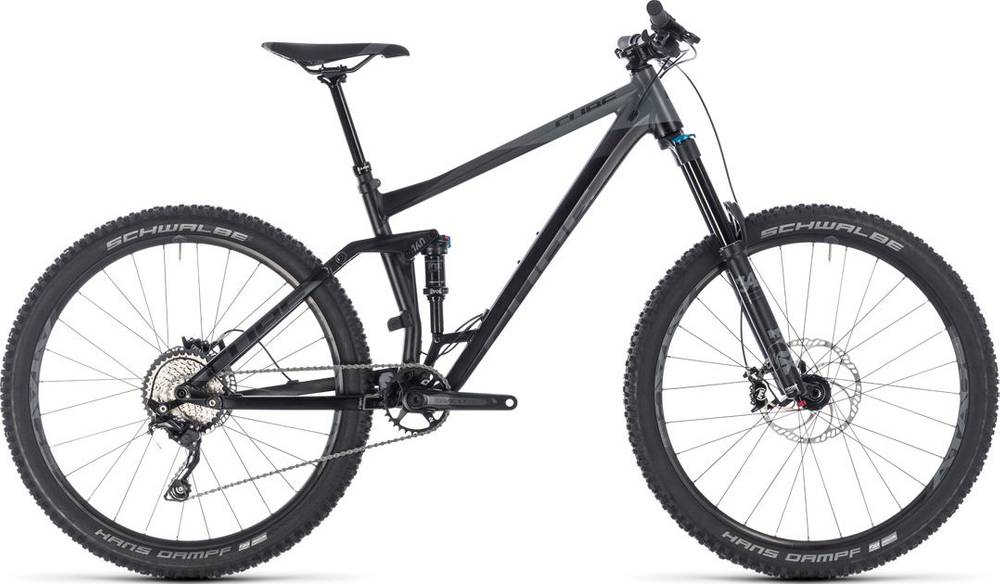

STEREO 160 Race 27.5 is a Cube Stereo 160 model. There are 15 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.5 kg (29.76 lbs), the STEREO 160 Race 27.5 model is a bit lighter than average. In short, the average Enduro bike weight is 5.7% higher than this one.
STEREO 160 Race 27.5 components
Fork
The fork installed on this bike is the Fox Float 34 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS EVOL, with a travel distance of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The STEREO 160 Race 27.5 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. CUBE STEREO 160 Race 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
CUBE STEREO 160 Race 27.5 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
