Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
16"
158cm - 171cm
18"
168cm - 180cm
20"
178cm - 189cm
22"
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, Boost148, AXH
Suspension Fork
Fox 34 Float, 3-Position Micro-Adjust GRIP Damper, Tapered, 15x110mm, 160mm
Rear Shock
Fox Float DPS EVOL, 200x57mm, Open/Medium/Firm Mode
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-DSGS, ShadowPlus, 11-Speed
Front Derailleur
Shimano SLX FD-M7020-D, Direct Mount, Side Swing
Shift Levers
Shimano SLX SL-M7000-I, Direct Attach
Cassette
Shimano SLX CS-M7000, 11-42T
Crank
Shimano XT FC-M8000, 36x26T, 175mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano CN-HG601-11
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Fulcrum Red 55, 15mm x 110mm / 12mm x 148mm
Rear Hub
Fulcrum Red 55, 15mm x 110mm / 12mm x 148mm
Rims
Fulcrum Red 55 EM, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Spokes
28 / 28 spoke count
Tires
Schwalbe Fat Albert, Addix Soft, Kevlar, Tubeless Easy, 2.35
Brakes
Brakes
Shimano XT BR-M8000, Hydr. Disc Brake (180/180)
Brake Levers
Shimano XT BR-M8000
Cockpit
Stem
Race Face Aeffect R 35
Handlebar
Race Face Chester 35, 780mm
Grips
SDG Slater
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
SDG FLY MTN 2
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, 458x150mm (400x120mm for smallest frame size)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 20" | 22" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.41 mm | 1.42 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 721 mm | 743 mm | 762 mm | 775 mm |
| Rake | 43 mm | 43 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 110 mm | 110 mm |
| Stack | 608 mm | 620 mm | 629 mm | 644 mm |
| Reach | 415 mm | 432 mm | 446 mm | 452 mm |
| Top Tube Length | 570 mm | 590 mm | 608 mm | 619 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 113 mm | 126 mm | 136 mm | 153 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1161 mm | 1183 mm | 1202 mm | 1215 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

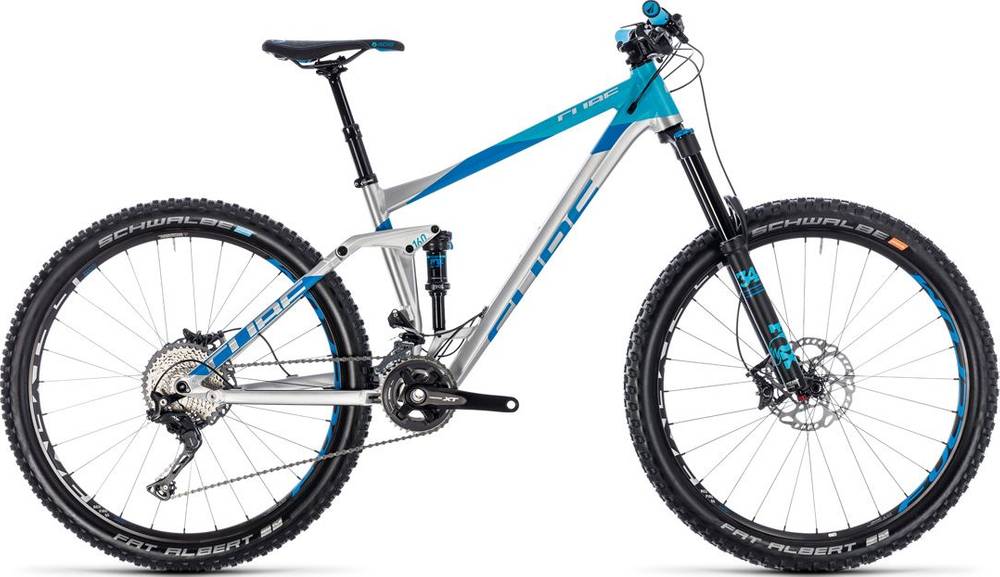

STEREO 160 SL 27.5 completes the Cube Stereo 160 model. CUBE released 15 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CUBE STEREO 160 SL 27.5 it’s weighing 13.4 kg (29.54 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.49% lighter than the average weight of Enduro bikes.
STEREO 160 SL 27.5 components
Fork
The fork installed on this bike is the Fox Float 34 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The STEREO 160 SL 27.5 has a rear shock with a travel of 160mm. The model Fox Float DPS EVOL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The STEREO 160 SL 27.5 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
